2 Fan 1 Jhumar POP Design and Other Jhumar Ceilings
- 12 designs
- Ceiling, fans and lights
- Updated 07 Oct 2026
A 2 fan 1 jhumar POP design puts a jhumar (chandelier) in the centre of the hall and a fan on each side, so the room stays cool and still has a showpiece. It is the most asked for main hall ceiling in Indian homes. These 12 original jhumar POP design photos cover two fan one jhumar POP design halls, single jhumar centres, jhumar with cove and dining jhumars.
The hardest part is not the design but the hanging. Every fan and jhumar must hang from a hook or anchor in the concrete slab. POP is only a skin. It cannot carry weight.
For more hall layouts see 2 fan POP designs, false ceiling ideas and hall POP designs.
2 Fan 1 Jhumar POP Design for Hall
This is the classic main hall layout: one jhumar in the middle and a fan on each side. It needs a hall of about 18 ft or longer so the blades and the jhumar do not crowd each other. A modern 2 fan 1 jhumar POP design keeps the lines clean and the colours light.

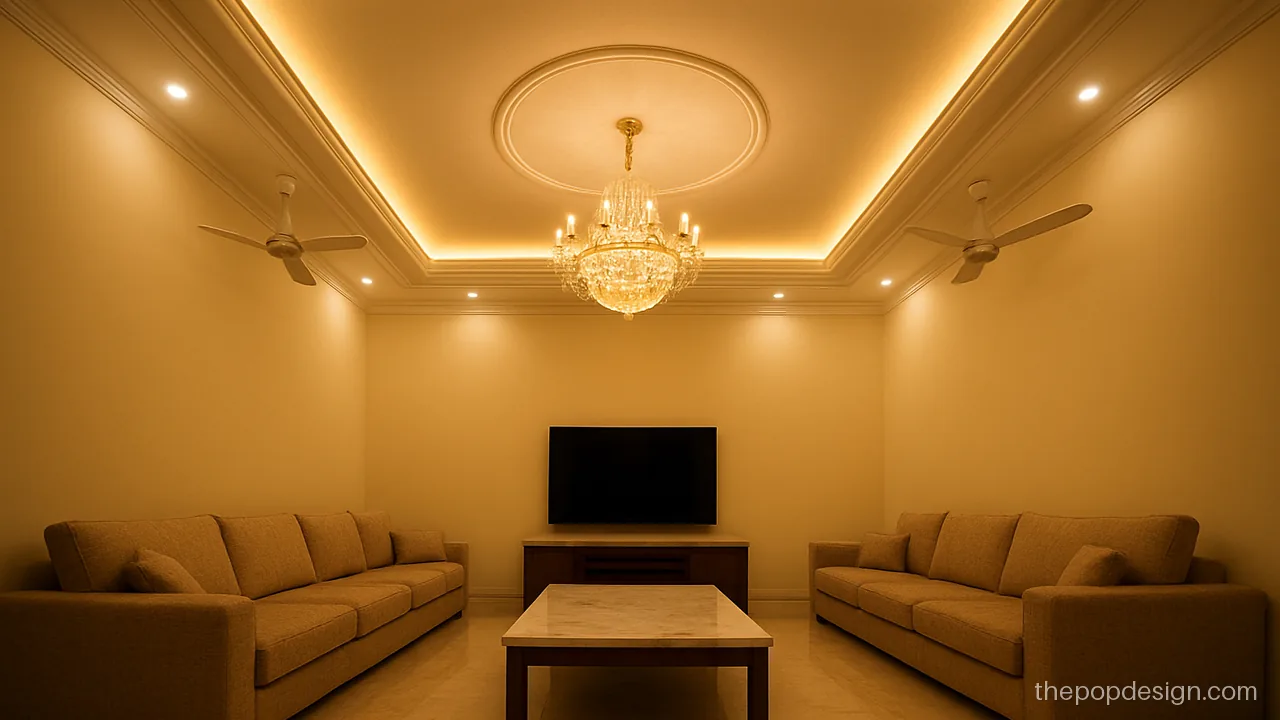

An oval recess holds the jhumar and the two fans sit in plain squares on either side. Balanced and easy to read from the sofa.
Contractor tip: Three hooks in the slab on one centre line. Keep at least 2 ft between each blade tip and the jhumar.

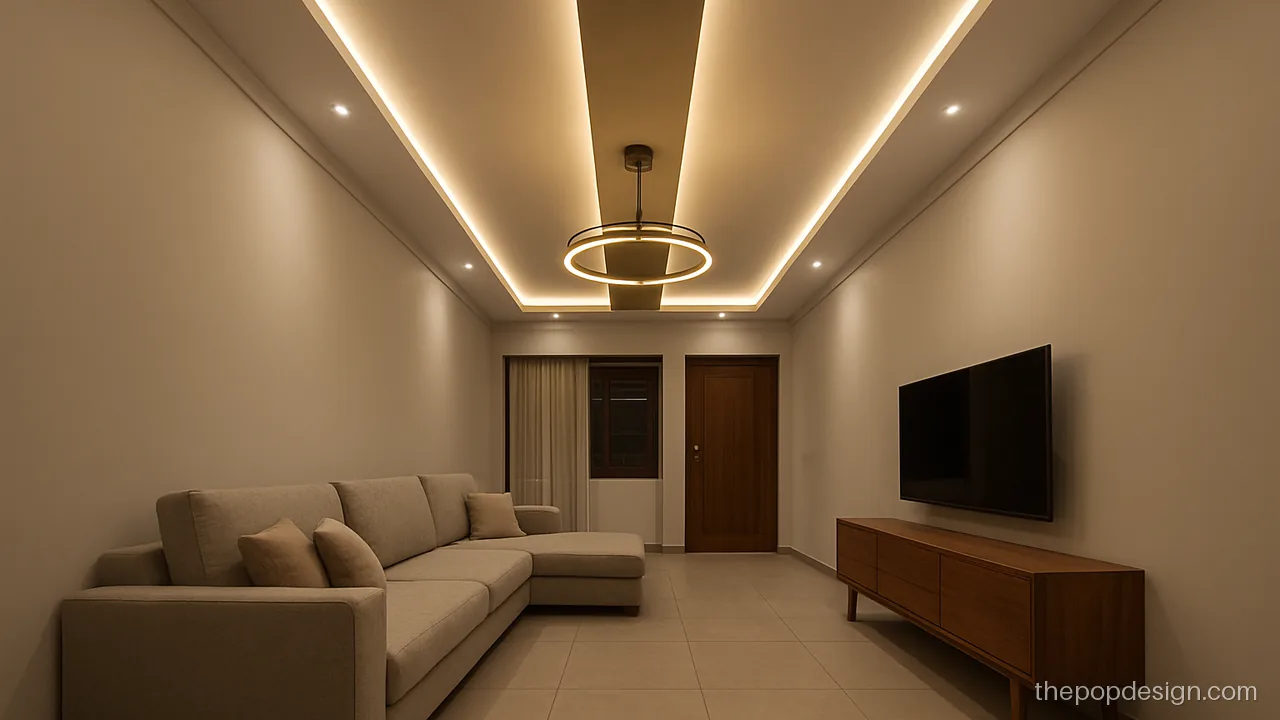

A long grey recess runs the length of the hall with the jhumar at the centre and fans at the ends. Profile lines add a modern edge.
Contractor tip: Make the grey recess one piece on a level frame. Profile lines must stop 1 ft short of the fan blades.

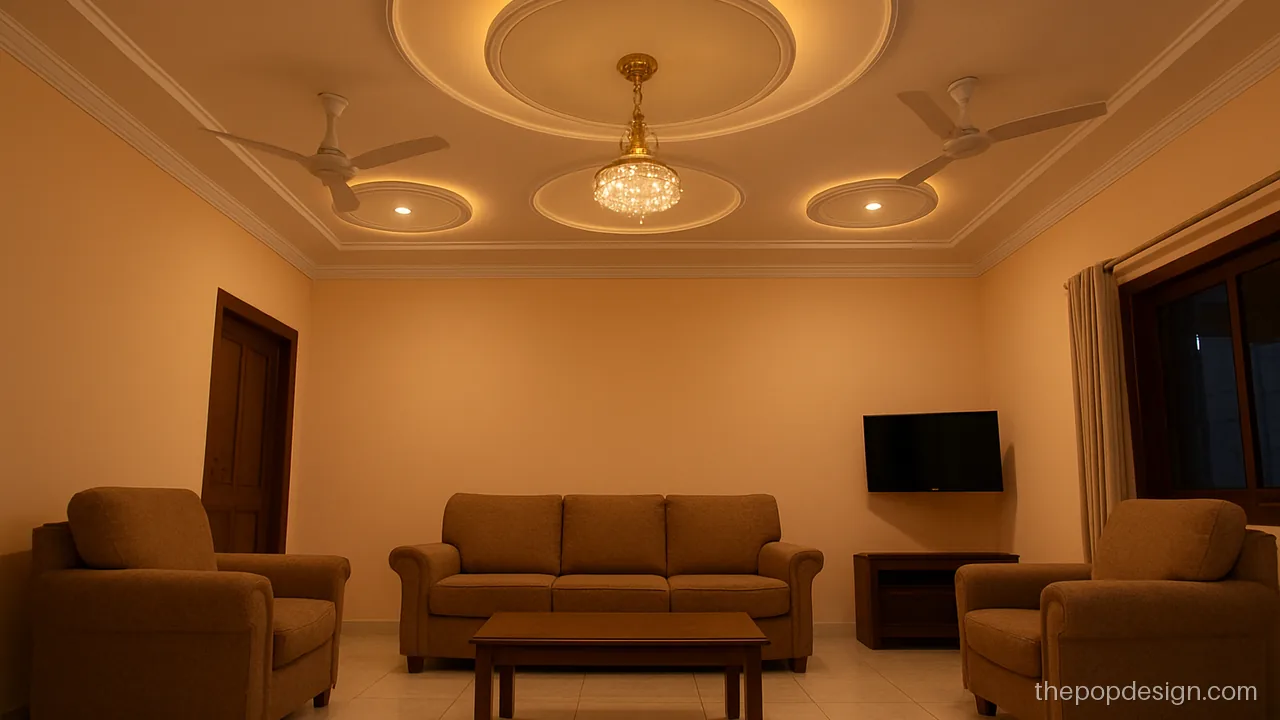

Three circles in a row: the big one for the jhumar, two smaller ones for fans. Simple, neat and kind on budget.
Contractor tip: Use one template for both fan circles. Centre each circle on its hook, not on the room tiles.
1 Fan 1 Jhumar POP Design
In a hall under about 16 ft long, two fans and a jhumar crowd the ceiling. One fan and one jhumar, placed over different zones, works better.

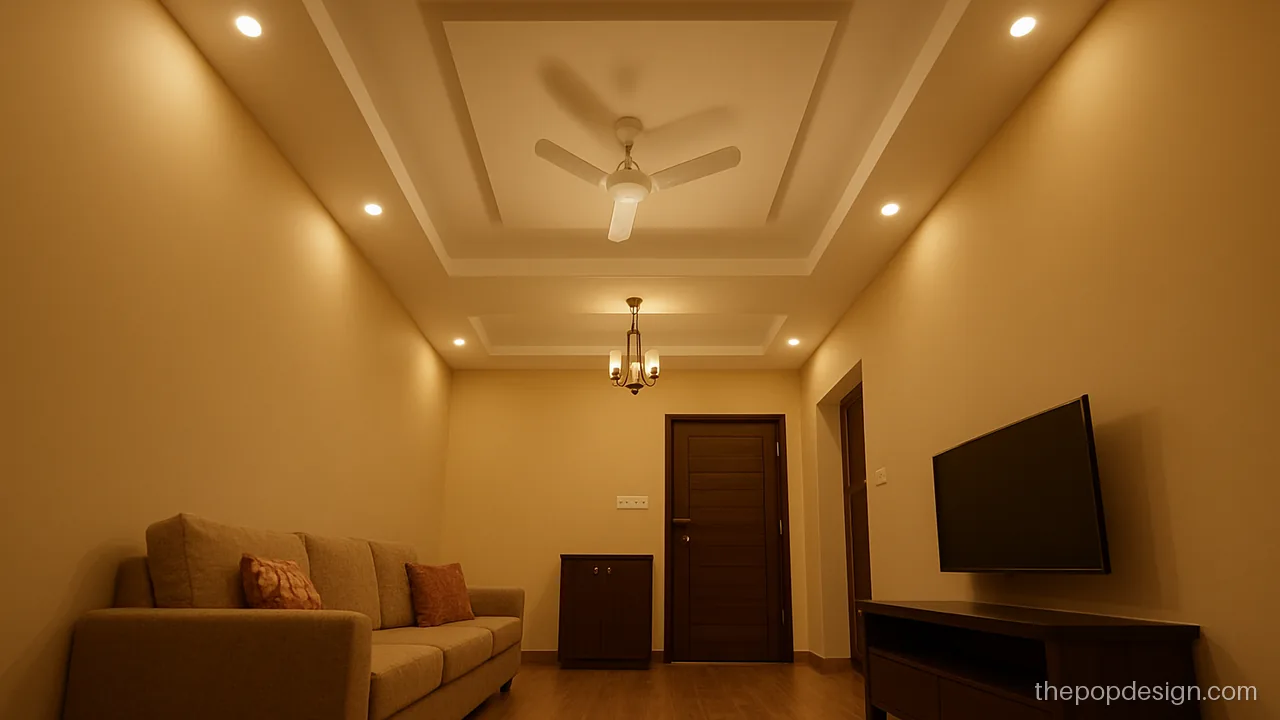

The fan cools the sitting area and the jhumar lights the entry side. Two zones, one calm ceiling.
Contractor tip: Mark the sofa position before hooks go in. The jhumar should not hang lower than 7 ft from the floor.

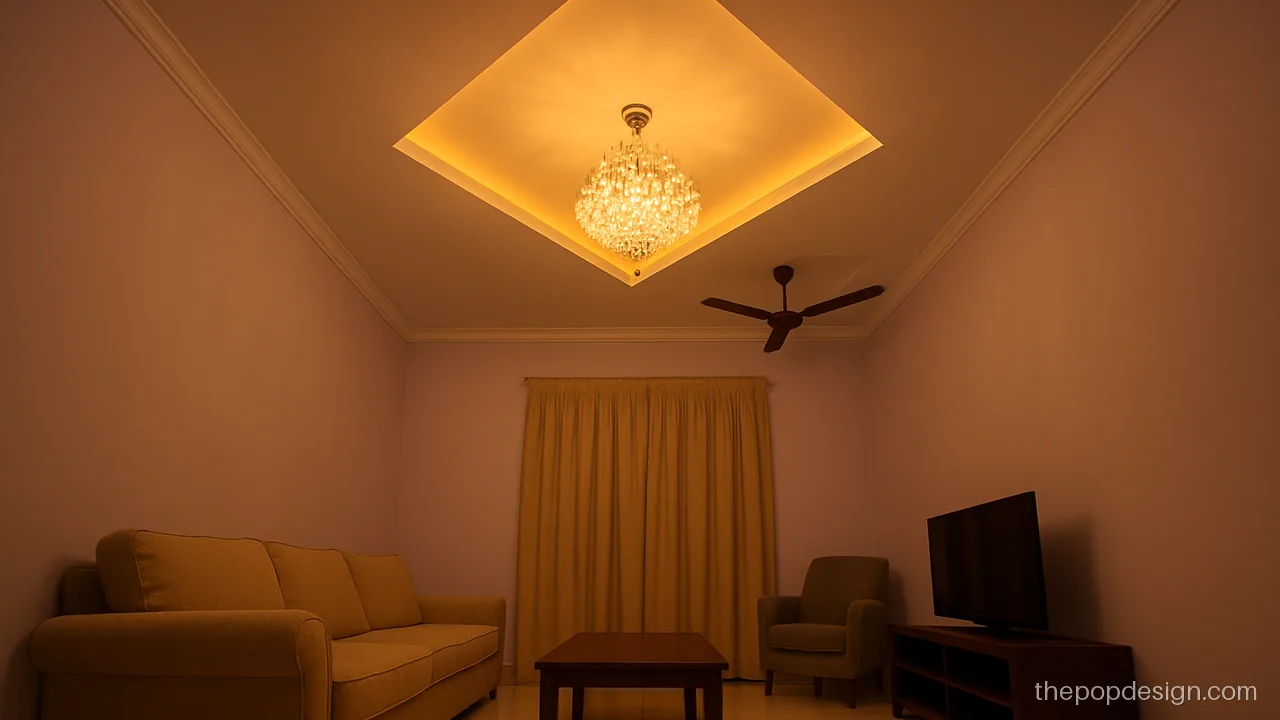

A diamond shaped recess gives the jhumar a strong frame. The fan sits in a quiet square on the side.
Contractor tip: Check diamond angles with a square tool. Keep the fan square at least 3 ft from the diamond edge.

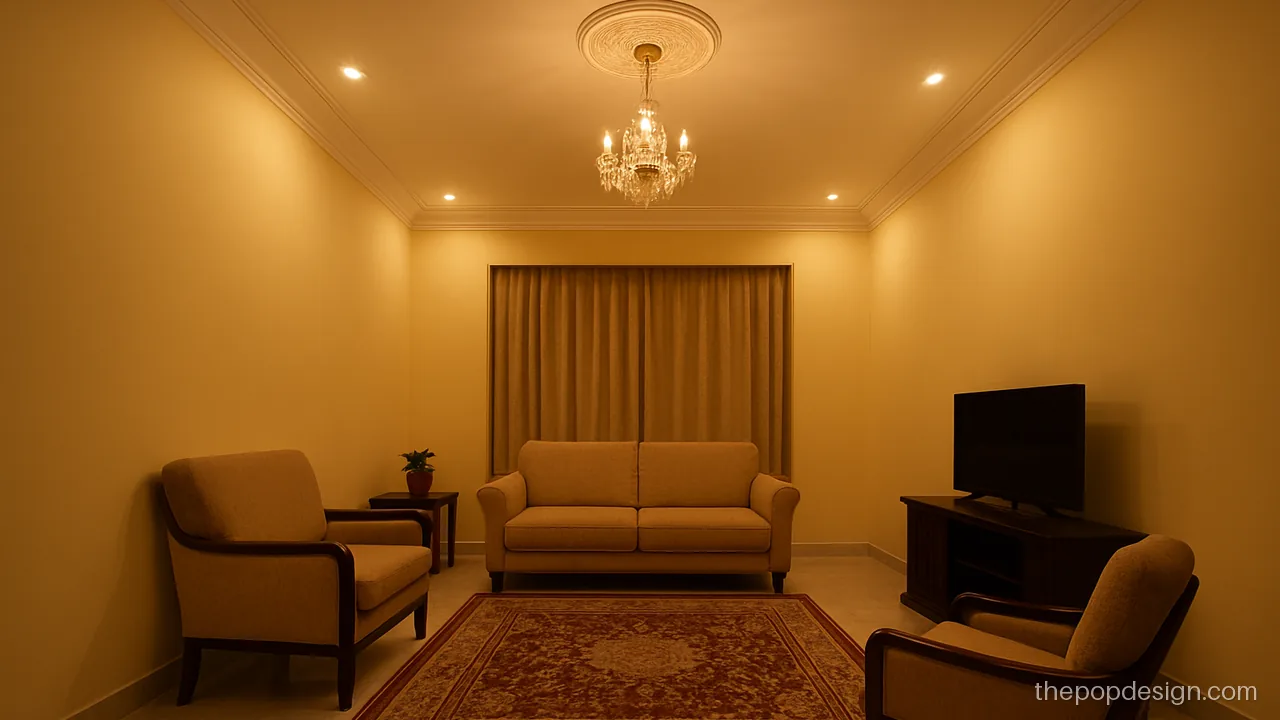

One flower medallion and one jhumar in the middle of a plain ceiling. The fan moves to the bedroom side passage.
Contractor tip: Screw the medallion to the frame and pass the jhumar rod through it to the slab hook.
Jhumar POP Design with Cove Light
In a hall POP design with jhumar, cove light fills the ceiling with soft glow, so the jhumar can be the sparkle, not the only light. This keeps the hall usable when the jhumar is off.

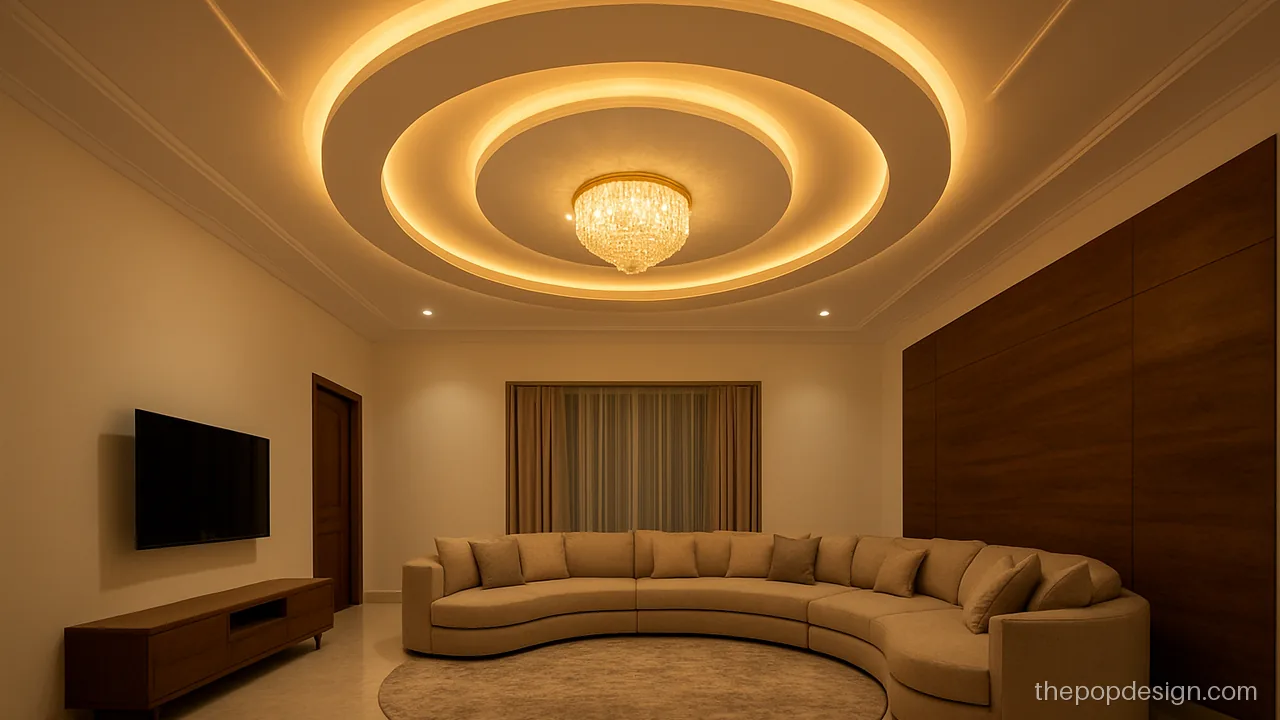

A round recess with two cove rings makes the jhumar look like it floats. It suits a square hall.
Contractor tip: Both rings need separate drivers. Make the circle from a fixed centre point using a string.

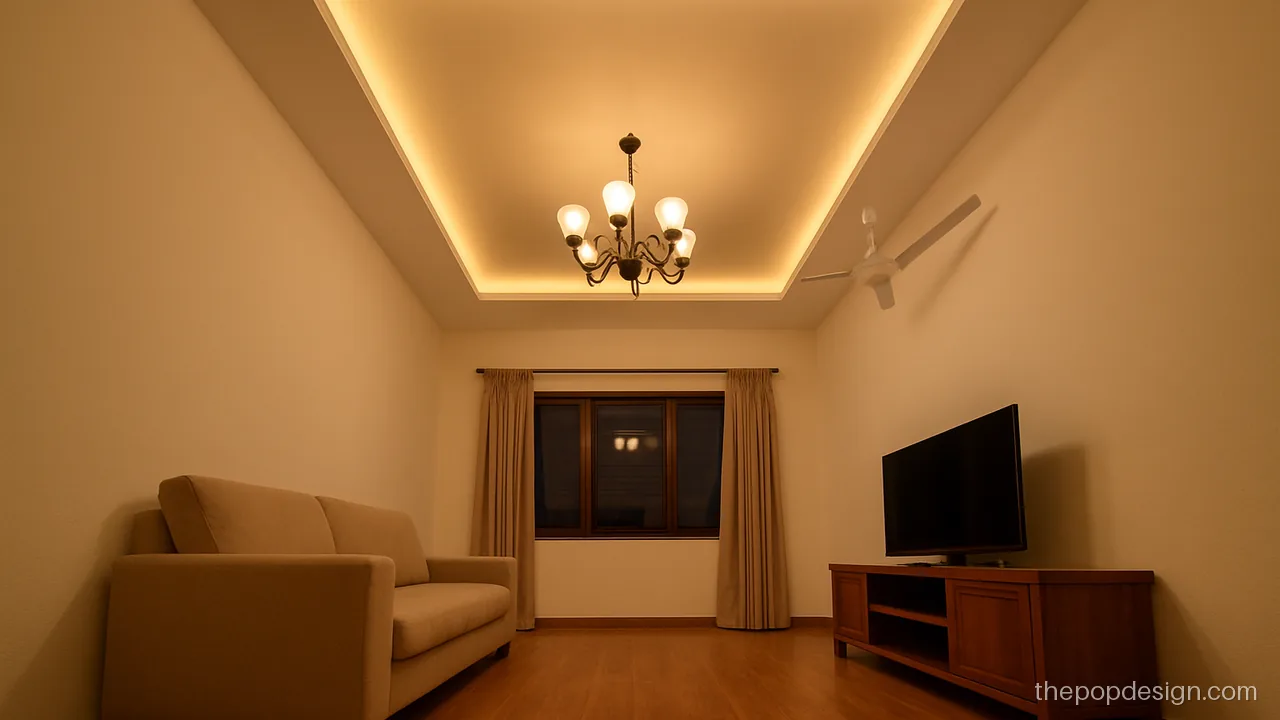

A deep rectangle in sand and white holds the jhumar. The warm cove makes the two tones blend at night.
Contractor tip: Paint the sand colour on the recess face only. Fix the jhumar after paint so it stays clean.

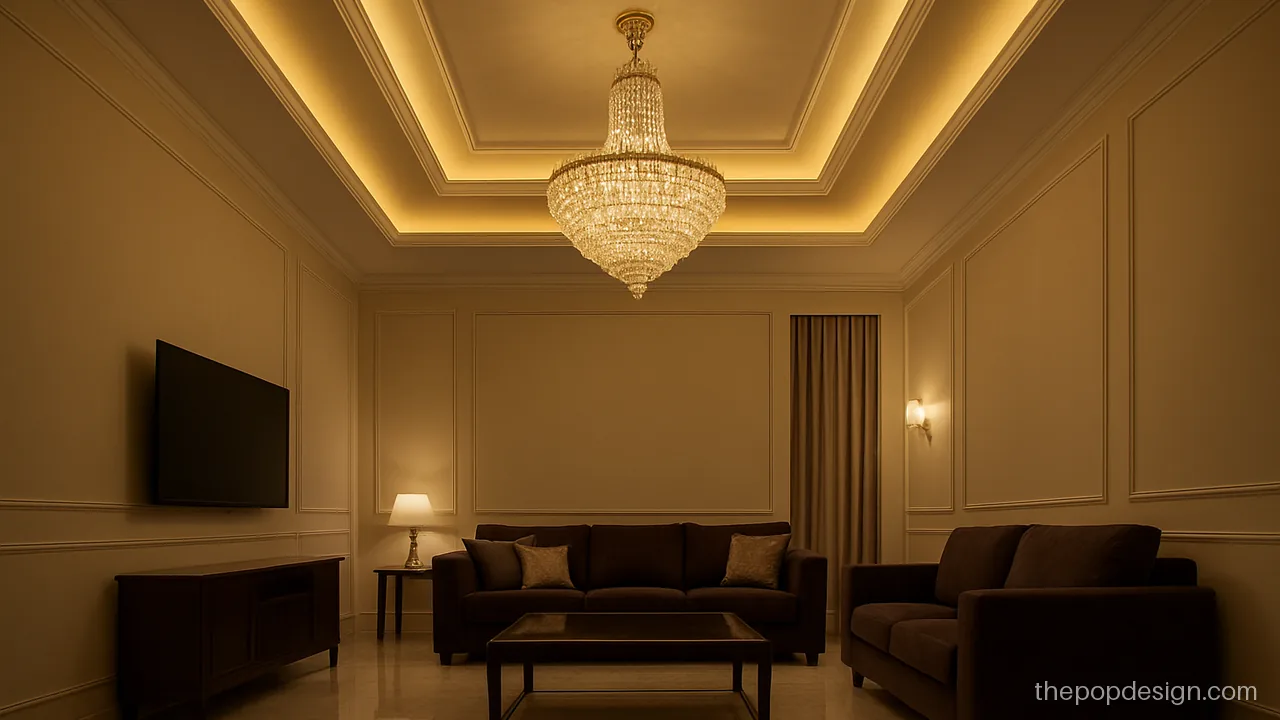

Layered steps in champagne and white lead the eye up to a large jhumar. A rich look for a big living hall.
Contractor tip: Total drop up to 8 inches needs a slab over 10.5 ft. Ask for the jhumar weight on the hook plan.
Dining Jhumar POP Design
A dining jhumar hangs lower, about 30 inches above the table. The POP design should follow the table shape, not the room.

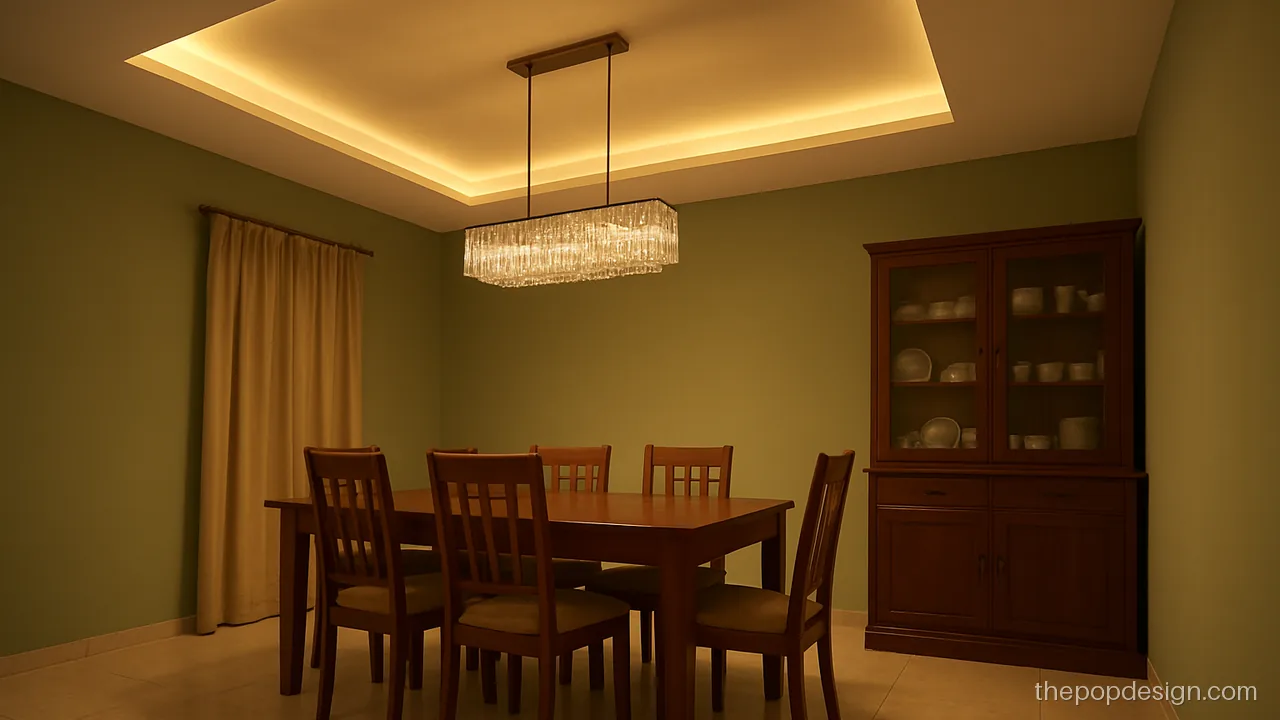

A rectangle recess the size of the table, with a long jhumar inside. Light falls right where the food is.
Contractor tip: Measure the table first and centre the recess on it. Jhumar hook goes in the slab at the table centre.

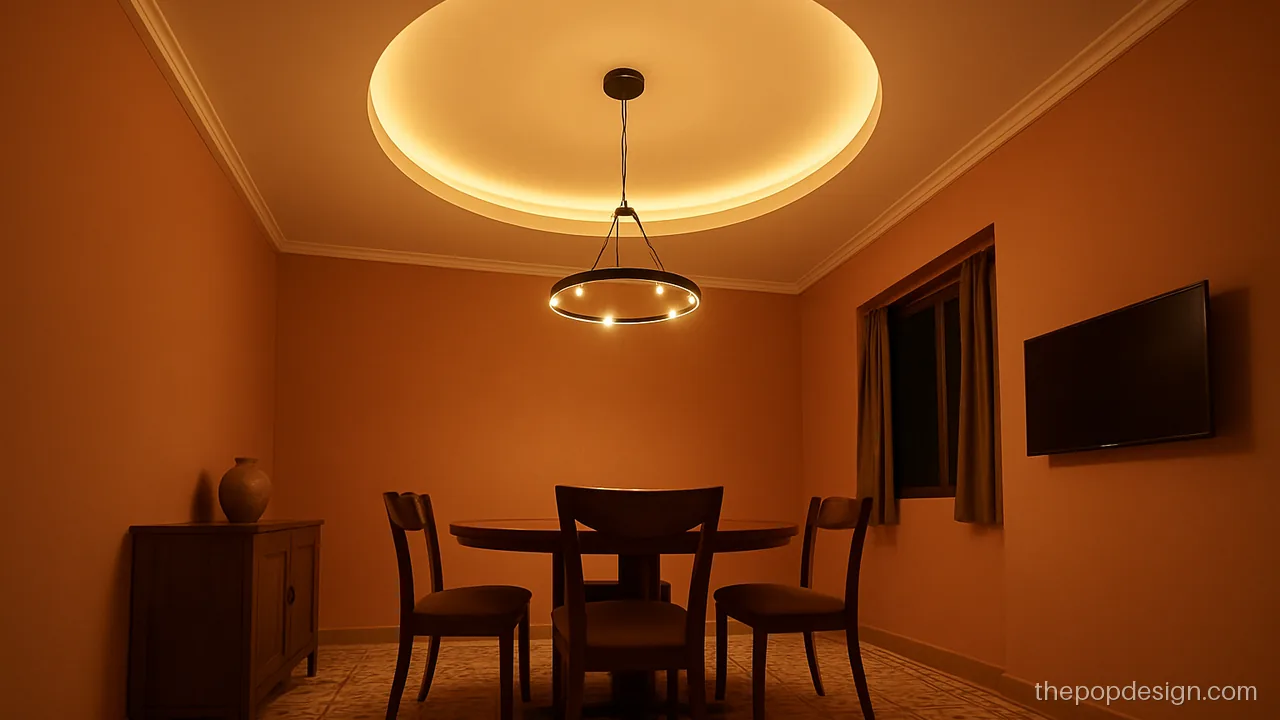

A circle above a round table repeats the shape. A small metal jhumar keeps it light.
Contractor tip: Keep the jhumar about 30 inches above the table top. Check the circle centre with a plumb line.

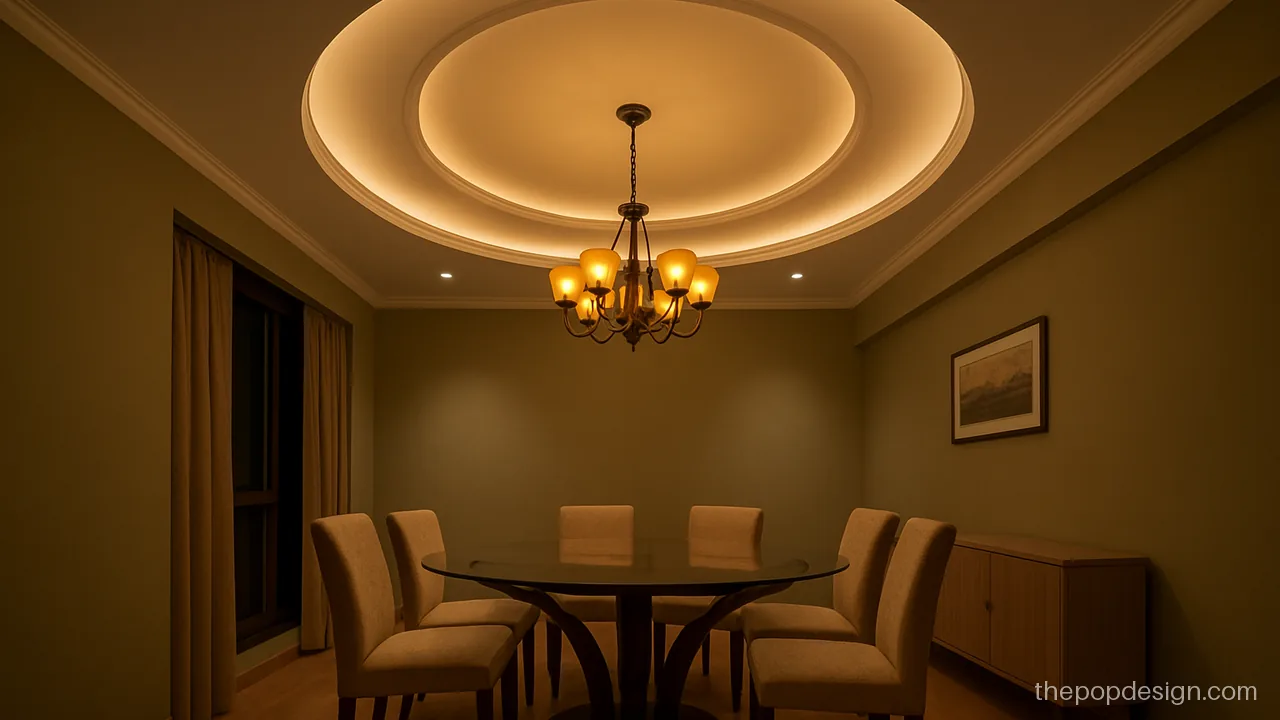

An oval recess mirrors an oval glass table, and a warm glass jhumar hangs low over it. Soft and welcoming at dinner.
Contractor tip: Ask for the oval drawn from the table outline. Fix the hook and wire before the frame closes.
Hooks in the Slab and Jhumar Weight
Before you finalise any POP design 2 fan 1 jhumar layout, plan the hooks. A small jhumar may weigh a few kilos. A big crystal one can be much heavier. A fan also pulls and shakes when it runs. So:
- Hooks first: fix all hooks or anchor fasteners in the slab before the frame goes up.
- Tell the weight: give the mistri the jhumar weight. Heavier pieces need a stronger anchor.
- Through, not on: the downrod or chain passes through a hole in the POP. Nothing rests on the POP.
- Test pull: ask for a firm pull test on each hook before closing the ceiling.
- Wiring: run a separate wire for the jhumar with its own switch.
Spacing Fans and Jhumar in a Hall
| Hall length | Layout | Tip |
|---|---|---|
| Under 16 ft | 1 fan 1 jhumar | Put them over different zones |
| 16 to 20 ft | 2 fans, small jhumar | Keep 2 ft between blade tip and jhumar |
| Over 20 ft | 2 fans, large jhumar | Split the ceiling into three equal parts |
The jhumar bottom should be at least 7 ft above the floor in a walking area. Over a dining table it can hang lower. For more on light lines between fans see profile light design.
POP design questions
What size hall suits a POP design for hall 2 fan 1 jhumar layout?
A hall about 18 ft or longer works best. In shorter halls the blades and jhumar crowd each other. Use 1 fan 1 jhumar for smaller halls.
Can a jhumar hang from the POP ceiling?
No. A jhumar must hang from a hook or anchor in the concrete slab. The chain or rod passes through the POP. POP cannot take the weight and will crack or fall.
Which pop design for hall with two fans and jhumar is simple?
Three circles or three squares in a row, one for each item, inside a plain border. It is easy to make and keeps the cost low.
Does the jhumar shake when the fans run?
It can if the fans are too close or the hook is loose. Keep 2 ft between blade tip and jhumar, and use a firm slab anchor. Balance the fans if they wobble.
What are the pop jhumar design latest styles?
Right now, linear recesses with profile lines, round double cove rings and simple metal ring jhumars are popular. Heavy carved work is now mostly kept for large bungalow halls.
How high should a dining jhumar hang?
About 30 inches above the table top. That lights the food and does not block the view across the table.
