Porch POP Design for Front Porch, Parking and Chajja
- 15 designs
- By room
- Updated 07 Oct 2026
A porch pop design is the first thing guests see, and it lives outside in rain, dust and summer heat. So it has to look neat from the gate and still hold up after a few monsoons. That means low-relief shapes, sealed edges and exterior paint, not the deep coves you would put in a bedroom.
Below you will find the best pop design for porch areas of every kind: plus minus ceilings, porches with no false ceiling drop at all, chajja undersides, car parking roofs and porches with a fan. Each picture has a short note for your POP wala.
Planning the inside too? See our hall POP design and balcony POP design pages for matching ideas.
POP Plus Minus Design for Porch
A modern pop plus minus design for porch ceilings uses shallow raised and recessed boxes. Keep the steps small, about 2 to 3 inches, so water and dust have fewer ledges to sit on. More shapes on our plus minus POP design page.
Two offset boxes, one up and one down, give the porch a crisp shadow line. It suits a wide entry with a double door.
Contractor tip: Keep steps at 2 to 3 inches only. Use exterior grade putty and waterproof primer on all edges.

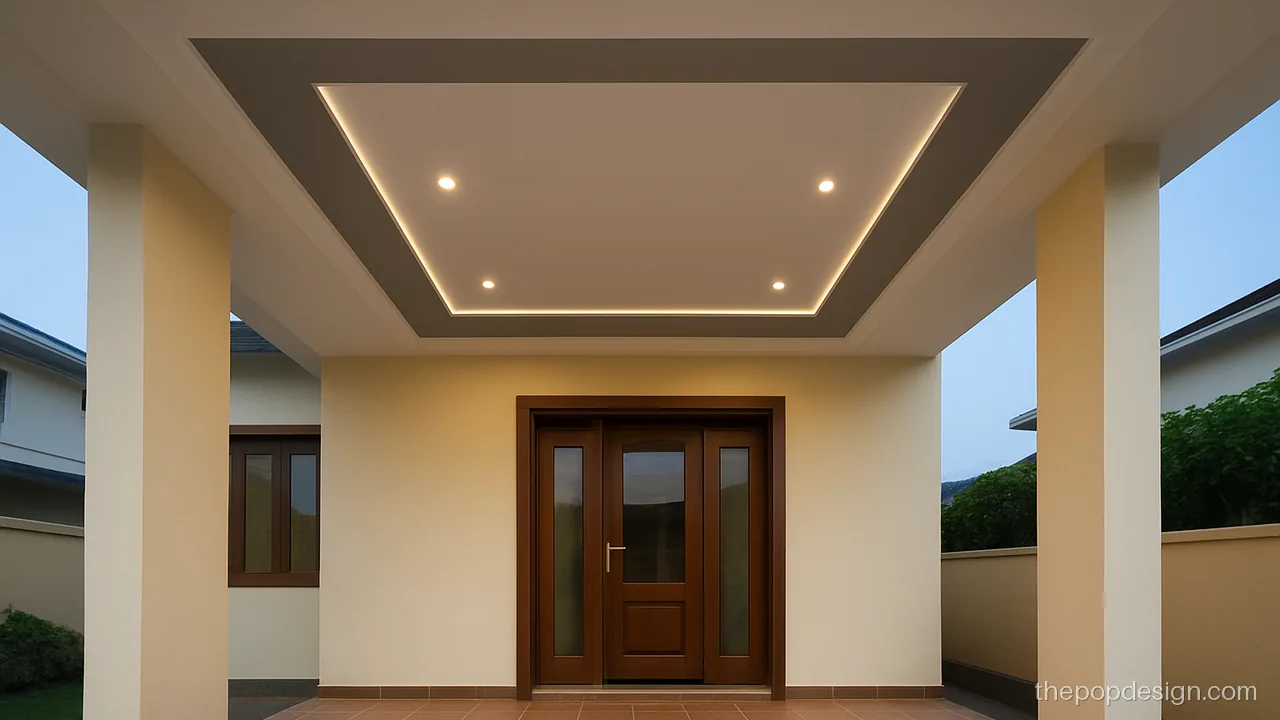

A soft grey band between two white frames adds colour without looking loud from the road.
Contractor tip: Paint grey inside the recessed band only. Ask for an exterior acrylic finish, two coats after primer.

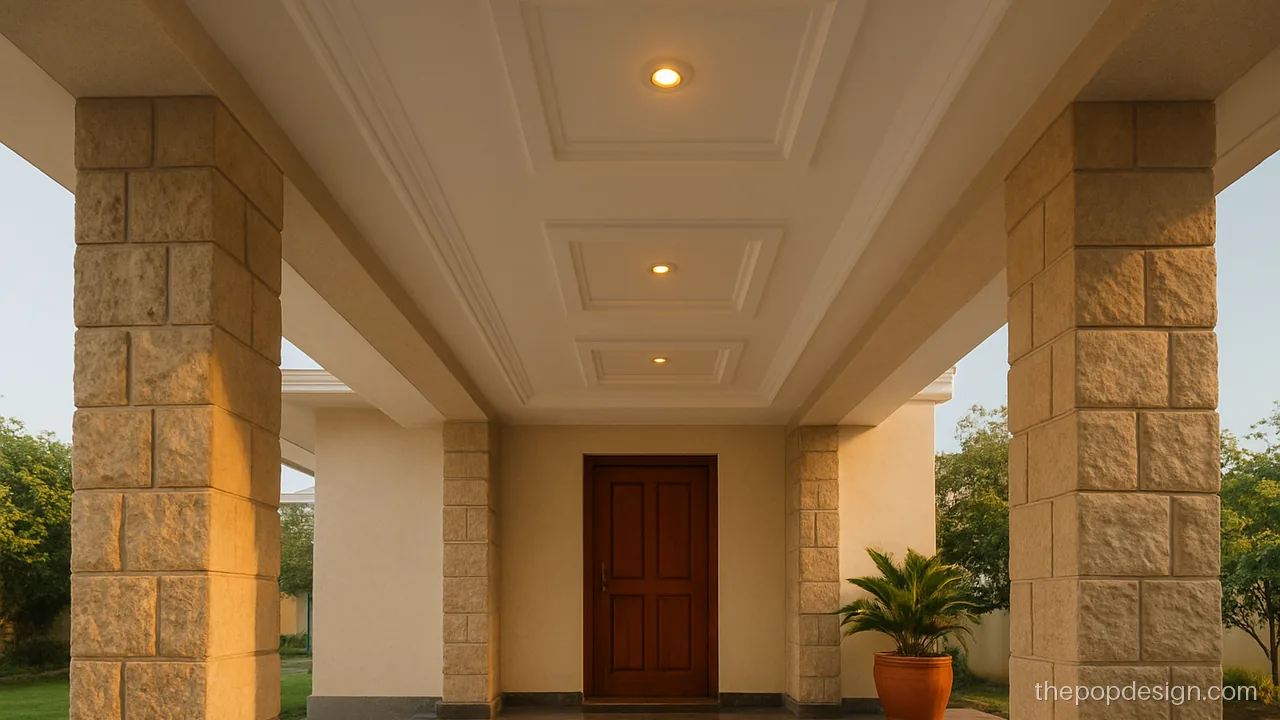

Three stepped squares sit between the pillars and line up with the main door. Clean, balanced and easy to repeat.
Contractor tip: Line the squares up with the door centre. Check each step with a water level before punning.
POP Design for Porch Without Ceiling Drop
Many porches have a low slab or no room for a false ceiling. A pop design for porch without ceiling drop works straight on the slab with grooves, a cornice and lights. It is the cheapest and most weather-safe choice.

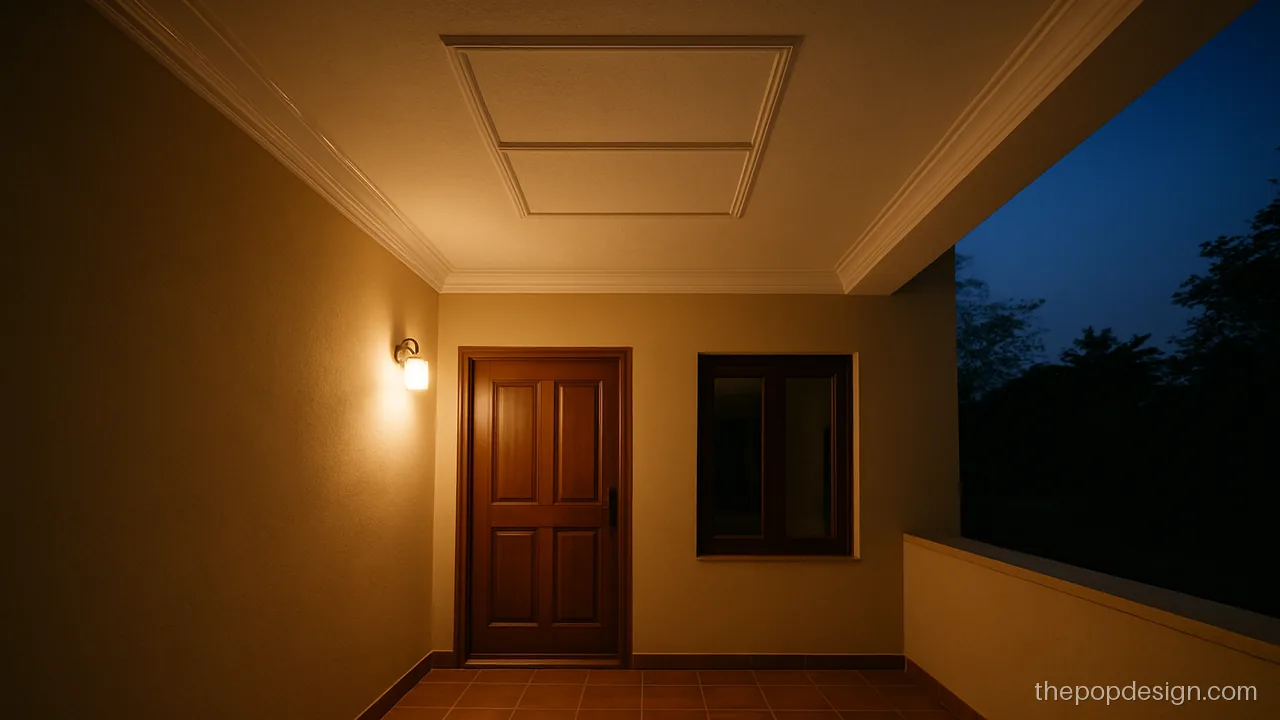

Grooves are cut into a plaster layer on the slab and a slim cornice runs around the edge. No frame, no drop.
Contractor tip: Work directly on the slab with a thin POP coat. Grooves 6 mm deep, cornice fixed with POP paste.

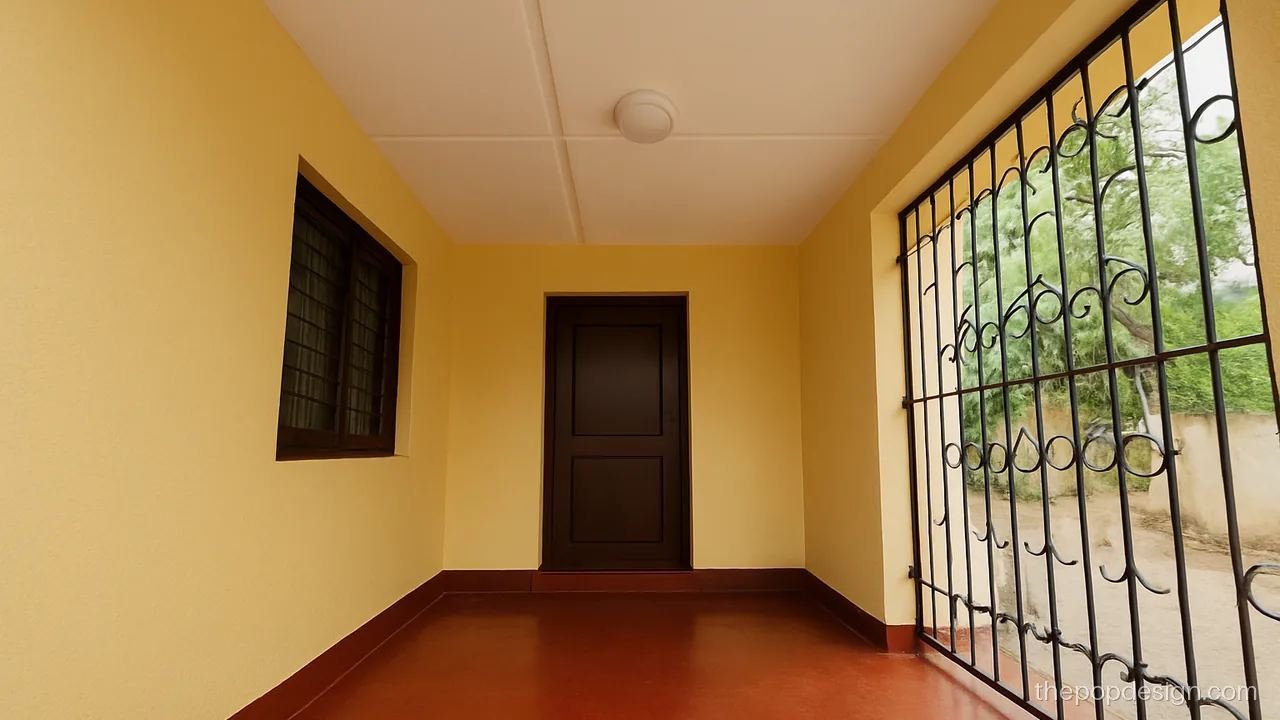

Only minus lines are used, cut into the slab plaster in a cross. Simple and suits an old house too.
Contractor tip: Mark the cross from the door centre. Seal grooves with exterior primer so damp does not enter.

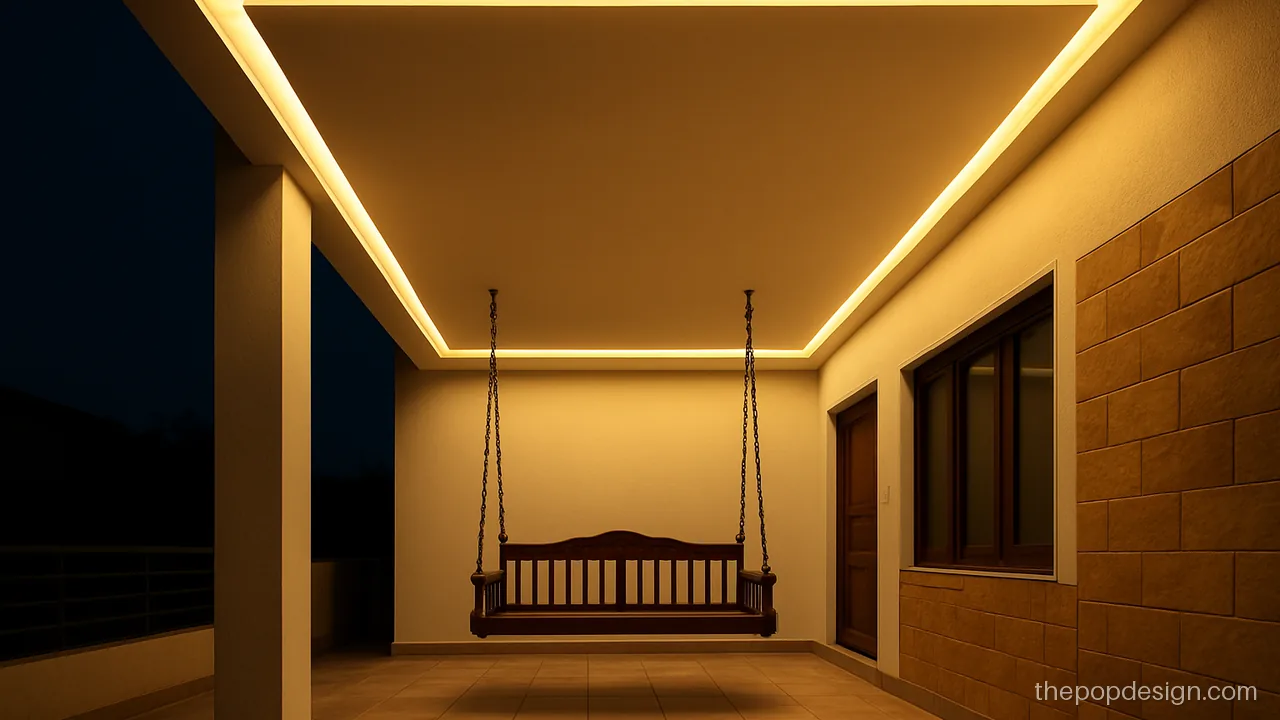

A narrow light strip is set in a shallow border along the edge. The centre stays at full slab height.
Contractor tip: Border only 2 inches thick. Use an outdoor-rated strip light and a sealed driver box.
Front Chajja POP Design
The chajja underside is seen from the road. A simple chajja pop design with a groove or light line makes the front wall look finished. Always add a drip edge so rain does not crawl back.

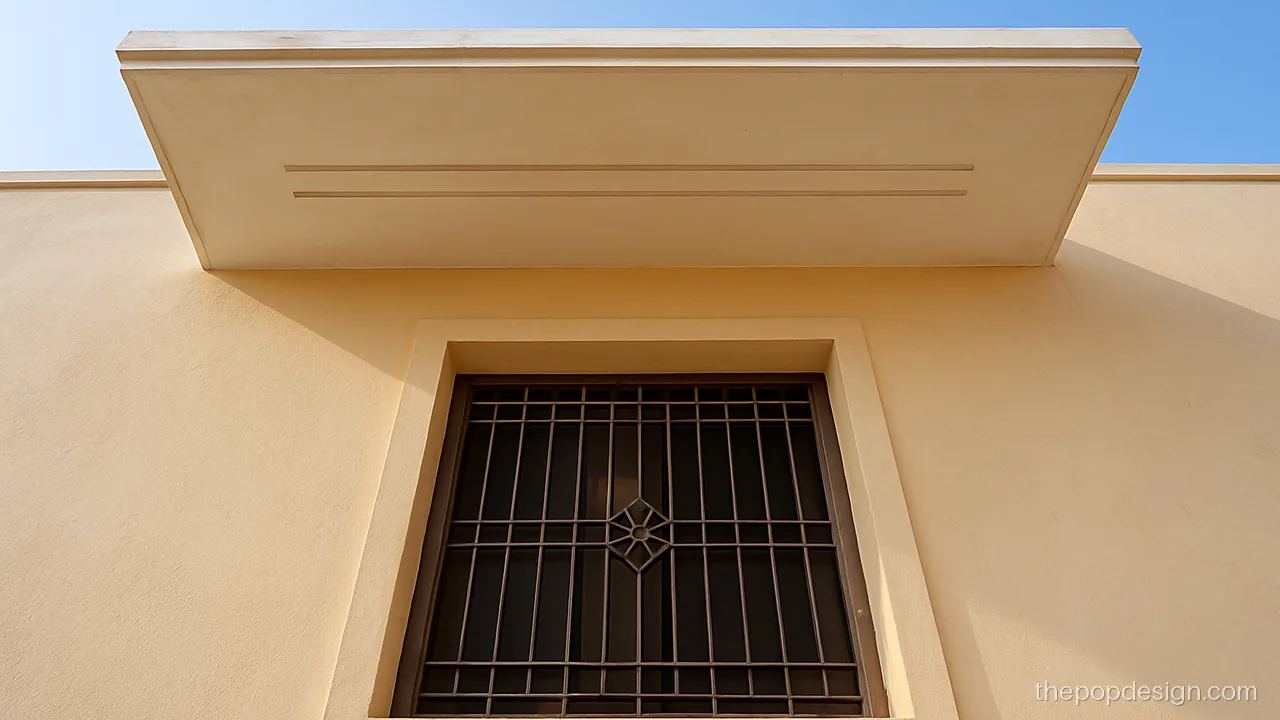

Two parallel grooves and a neat drip edge are all a small chajja needs. It costs little and lasts.
Contractor tip: Ask for a drip groove along the outer edge. Use exterior putty, not plain POP, on the underside.

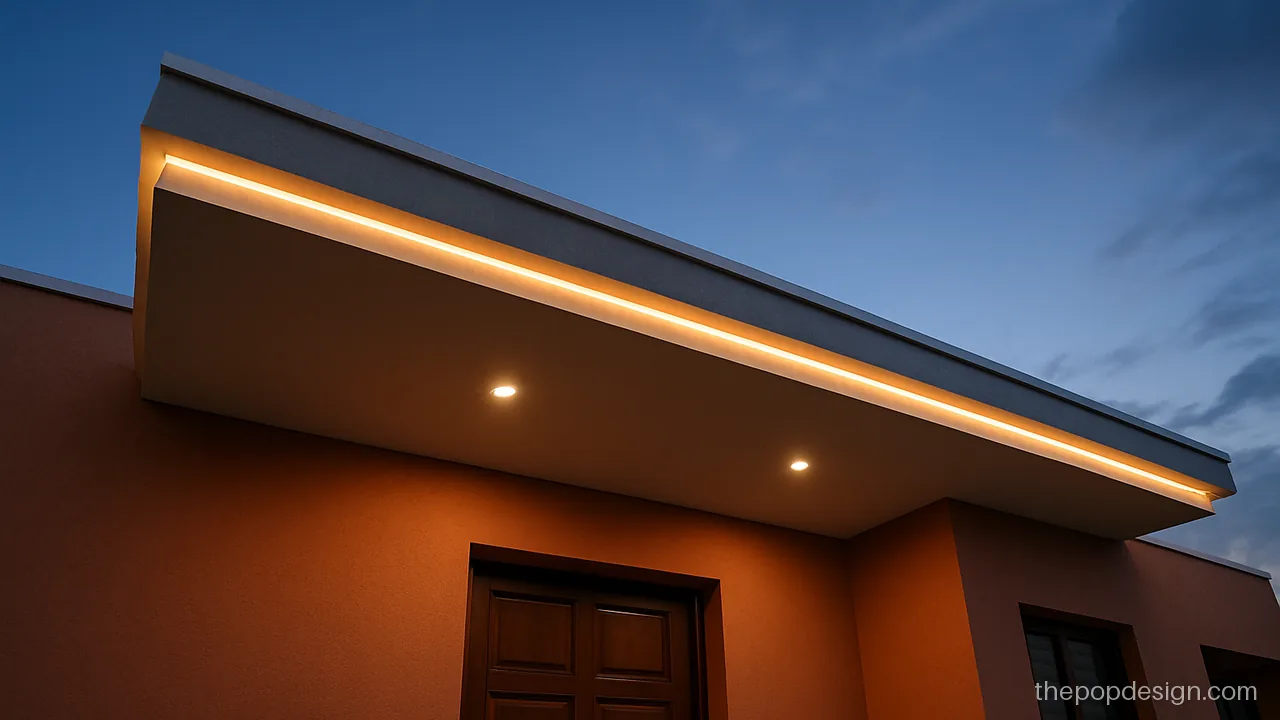

A shallow raised band with a light line turns the chajja into a soft glow at night.
Contractor tip: Fix the light in an aluminium profile. Keep the plus minus step under 1.5 inches.

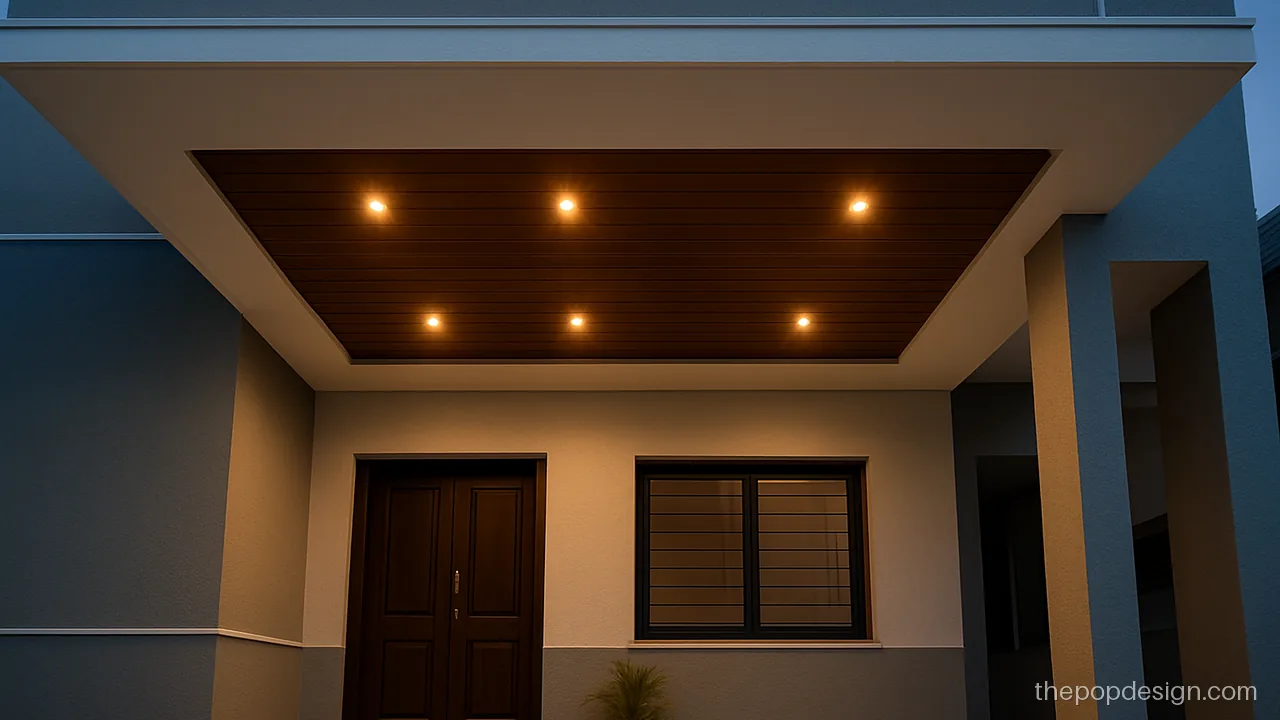

A wood look strip under the chajja matches a groove on the front wall for a modern front.
Contractor tip: Use exterior-grade wood look panel, not plain laminate. Spots must be IP-rated for rain.
Car Porch POP Design and Parking Ceilings
A car porch pop design needs bright light for parking and a shape that follows the car. Keep fittings high enough for an open boot. For the roof outside, see our POP design for roof page.

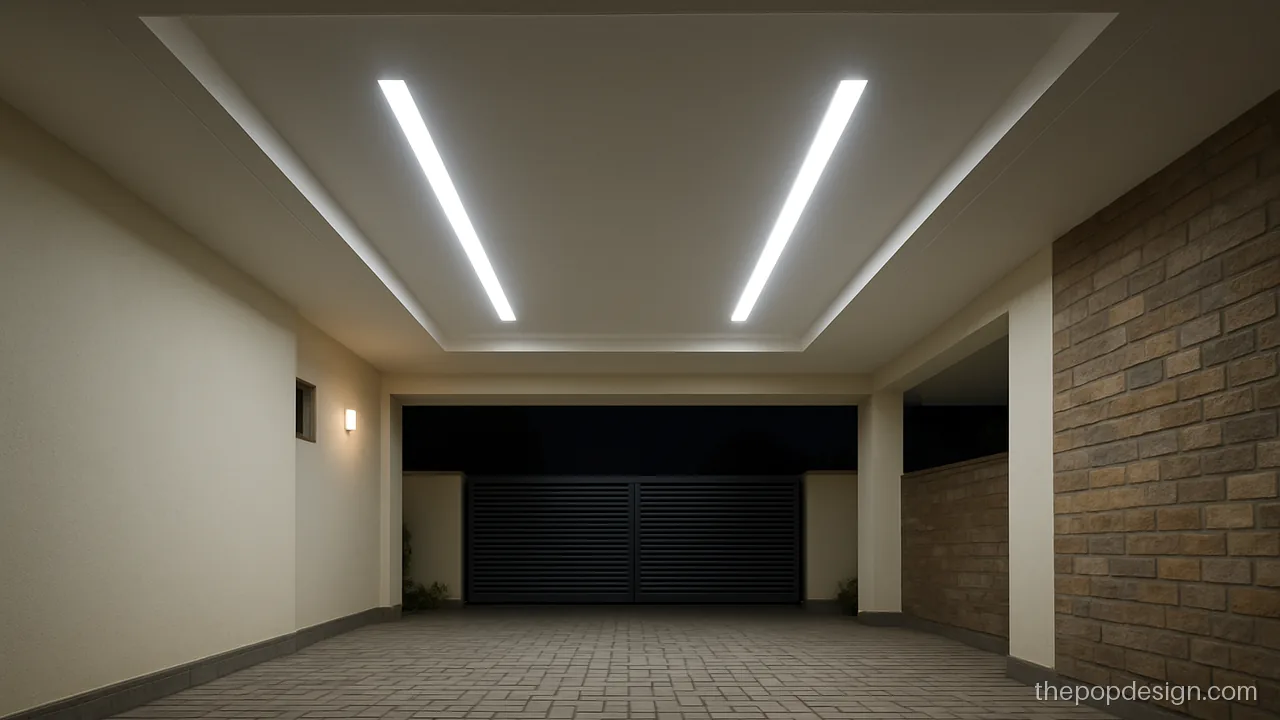

One long recessed panel follows the car. Bright linear lights make reversing easy at night.
Contractor tip: Keep clear height of at least 8 ft under fittings. Fix channels at 2 ft centres for strength.

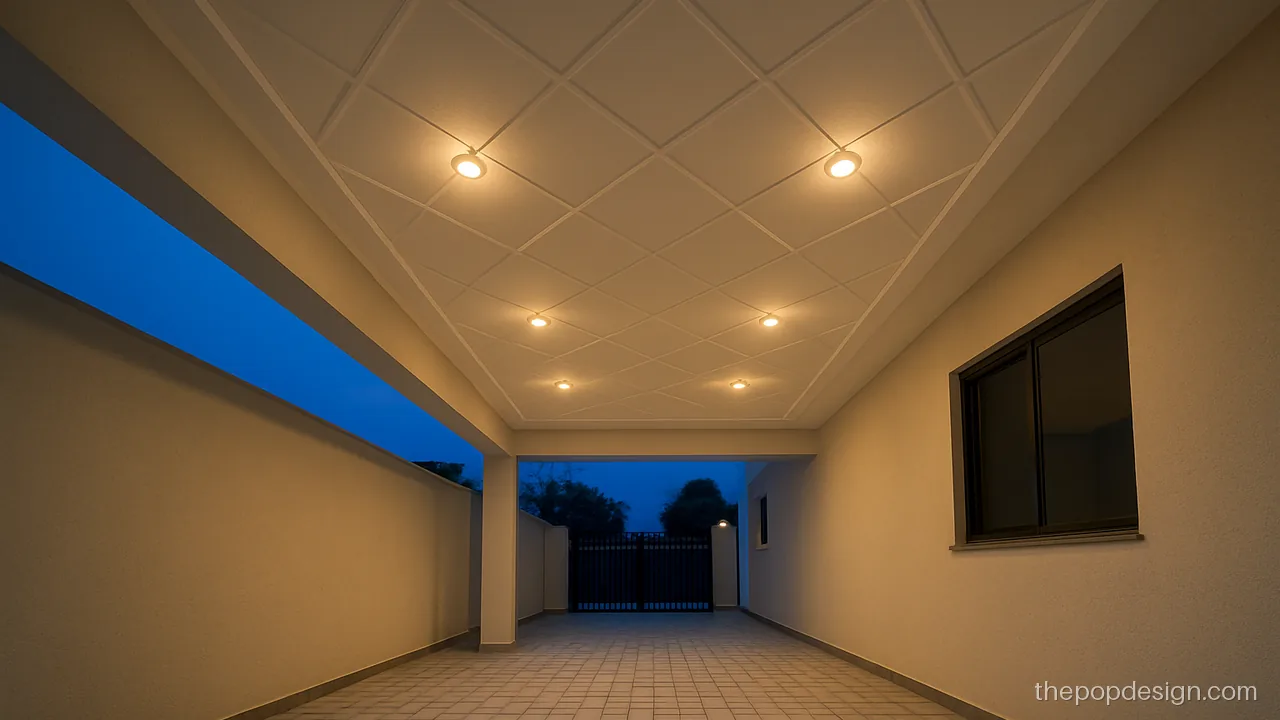

A shallow diamond grid adds pattern to a big parking roof without a heavy drop.
Contractor tip: Ask for a drawing of the grid. Lights go at grid crossings, wired before the POP coat.

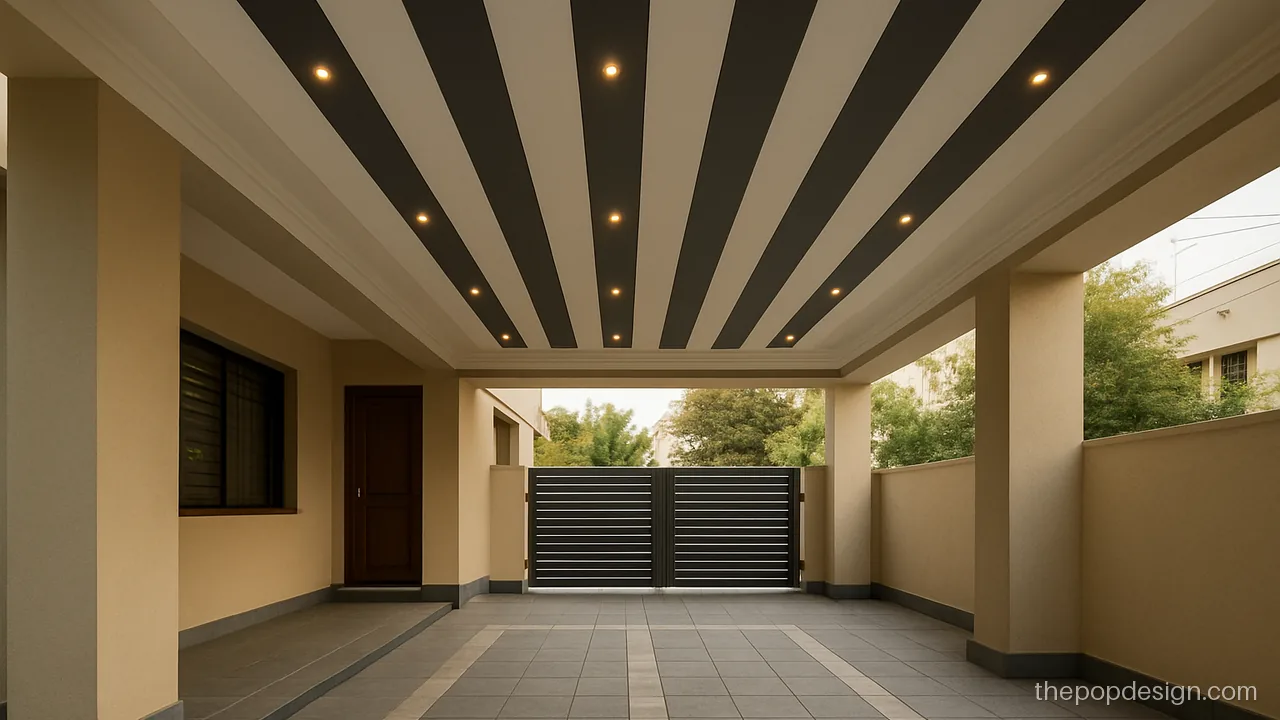

White and charcoal strips run across a double car porch for a bold modern look.
Contractor tip: Charcoal paint must be exterior grade. Mask each strip edge and paint after full drying.
Front Porch POP Design With Fan
A wide porch used as a sitting space often needs a pankha. The fan must hang from a slab hook, with the rod passing through the POP. Bedroom porch and hall porch layouts follow the same rule.

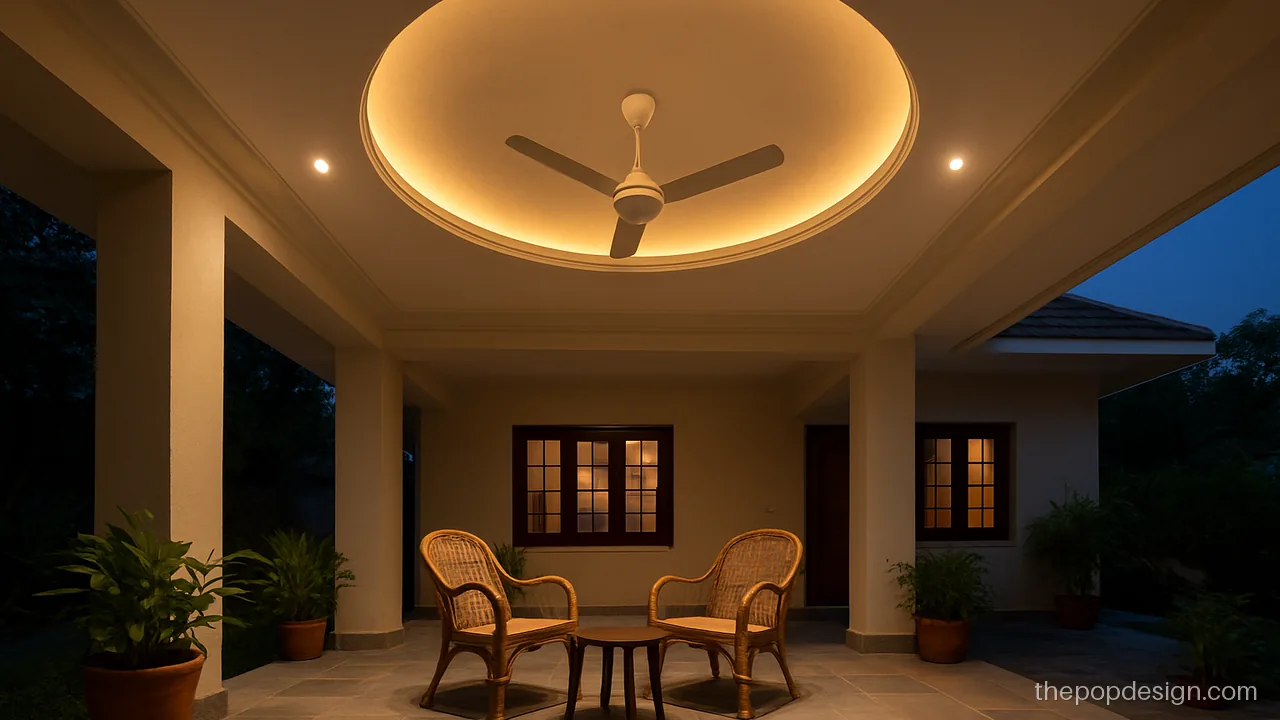

A recessed circle frames the fan over a small sitting corner. Good for porches used in the evenings.
Contractor tip: Slab hook in the circle centre. Seal the cove opening and use an outdoor strip light.

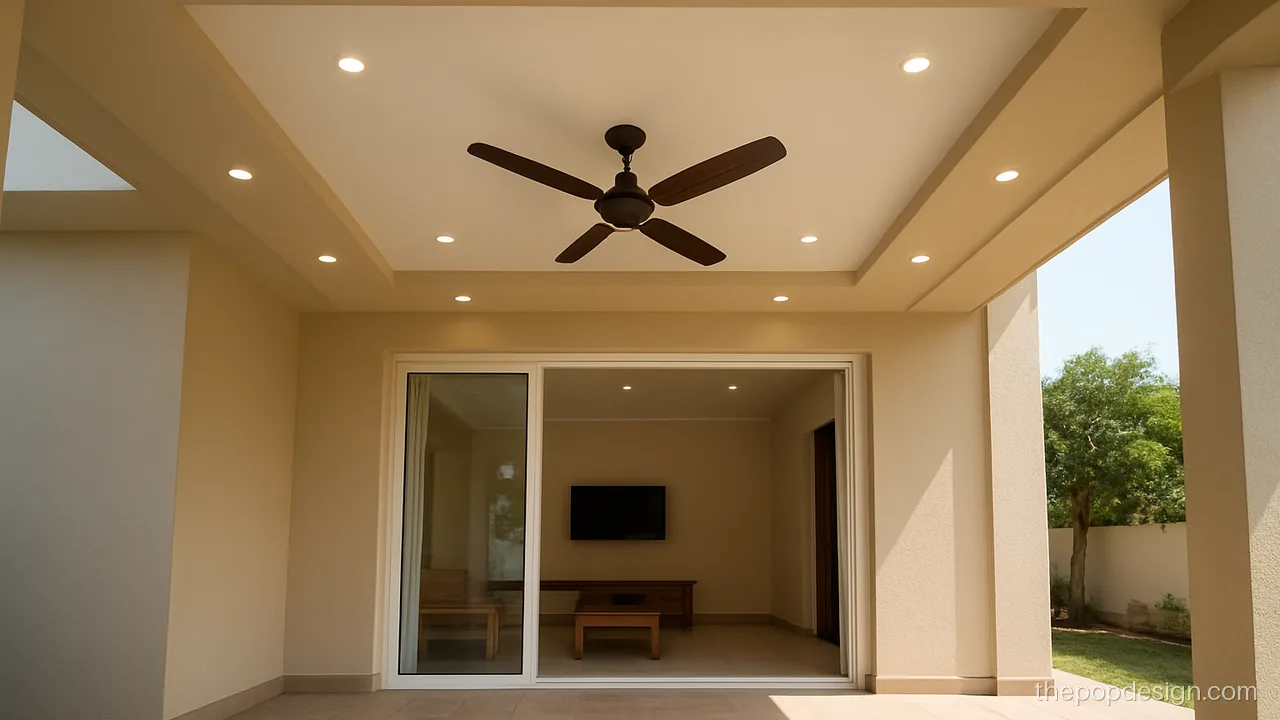

A raised rectangle holds the fan and a recessed border holds the lights. Suits a porch outside a hall door.
Contractor tip: Raised box 2 inches. Keep fan blades at least 2 ft from any wall or pillar.

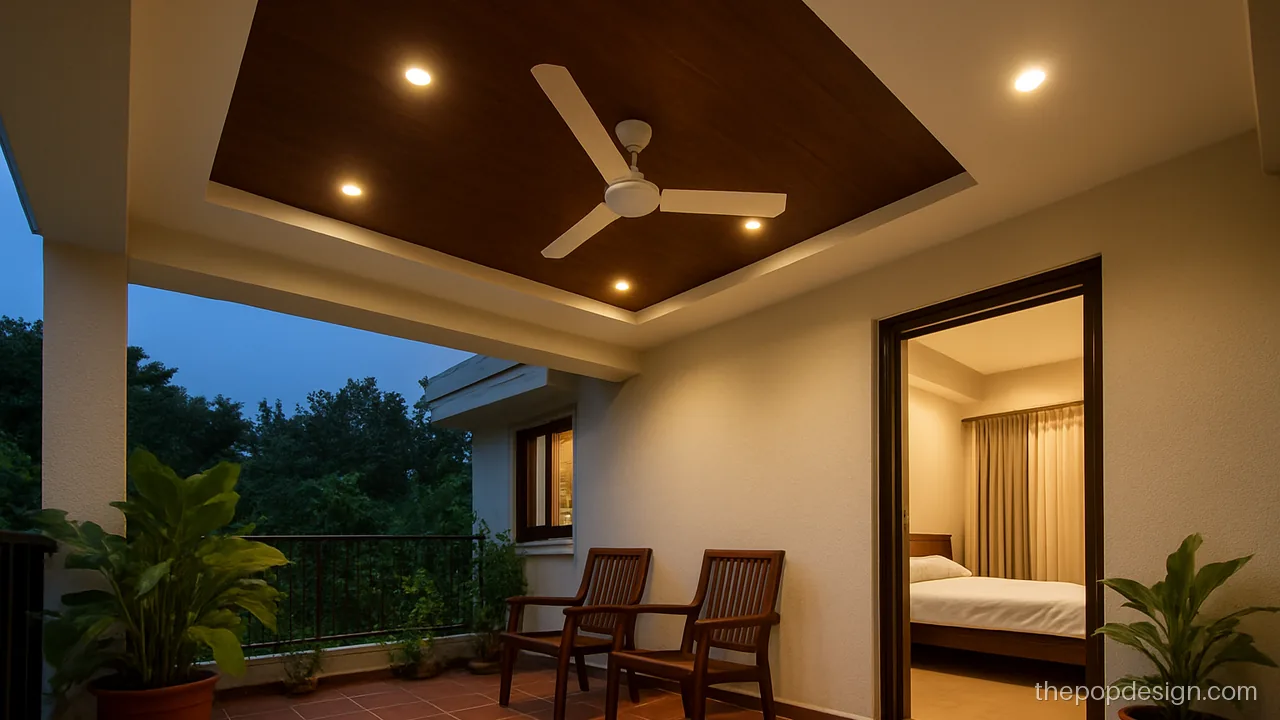

A small porch outside a ground floor bedroom gets a fan and a warm wood panel for quiet evenings.
Contractor tip: Wood panel must be exterior grade. Fan rod passes through POP, hook in the slab.
Choosing the Best POP Design for Porch Areas
Start with how the porch is used. A car porch pop design needs bright light and height. A sitting porch needs a fan and soft light. A tiny entry porch only needs a clean shape and one lamp.
| Porch type | Good design | Drop |
|---|---|---|
| Small entry porch | Grooves or one square recess | 0 to 2 inches |
| Sitting porch | Circle or rectangle with fan | 3 to 4 inches |
| Car parking | Long panel or strips | 2 to 4 inches |
| Chajja | Grooves, light line, drip edge | Under 1.5 inches |
For porch pop design latest looks, the trend right now is low-relief plus minus with one warm light line, not heavy coves.
Weather Proofing and What to Tell the POP Wala
- Fix any slab leak first. Water from above is the main enemy of outdoor POP.
- Ask for exterior putty and a waterproof primer on all exposed surfaces. Plain POP is not ideal where rain splashes.
- For open, wet porches, consider PVC or moisture-resistant board. See PVC and gypsum options.
- Use outdoor-rated lights and sealed driver boxes.
- Fans must hang from a slab hook, never from POP.
- Let the POP dry fully, often a week or more, before primer and exterior paint.
Cost builds up from area, the rate for single, double or plus minus work, and the extras, plus extras like light lines, wood panels and exterior paint. Grooves cost least. Plus minus and wood panels cost more.
POP design questions
Which is the best pop design for porch areas that get rain?
Low-relief designs with shallow grooves or 2 inch plus minus steps work best. Seal every edge with exterior putty and waterproof primer. If rain hits the ceiling often, use PVC or moisture-resistant board instead.
Can I get a front porch pop design for porch without ceiling drop?
Yes. Grooves, a slim cornice and a light strip can be done straight on the slab plaster. There is no frame and no drop, so the porch keeps its full height.
Is a car porch pop design different from a normal porch?
Yes. A parking ceiling needs brighter lights and enough clear height for an open boot. Long panels or strips that follow the car look best and are easy to build.
Can I hang a fan in a porch POP ceiling?
Yes, but only from a hook in the concrete slab. The downrod passes through a hole in the POP. Keep blade tips well clear of pillars and walls.
What colour works for a modern porch pop design?
White with one soft accent like grey, beige or a wood look strip works well. Use exterior grade paint. Dark colours fade faster in sun, so keep them to small bands.
How long does porch POP work take to dry?
Usually around a week or more, and longer in the monsoon. Outdoor POP should be fully dry before primer, or the paint will bubble and peel.
