2 Fan POP Design for Hall: Double Fan Ceiling Ideas with Notes
- 18 designs
- Ceiling, fans and lights
- Updated 07 Oct 2026
A 2 fan POP design for hall ceilings has one job above all: give each pankha its own place so the long room gets even air and still looks planned. A hall longer than about 18 ft rarely stays cool with one fan.
This page shows 18 original pop fan design photo ideas: two fan halls, plus minus double fan ceilings, single fan rooms, 3 fan big halls and simple fan boxes. Each comes with room size, light plan, budget and a note for your mistri.
Fans always hang from a hook in the concrete slab. The downrod passes through the POP. The POP is never the support. For full hall ideas see POP design for hall.
Two Fan Hall Designs: 2 Fan POP Design for Hall
These are attractive 2 fan POP design for hall layouts where each pankha gets its own frame. The trick is equal spacing from the walls.

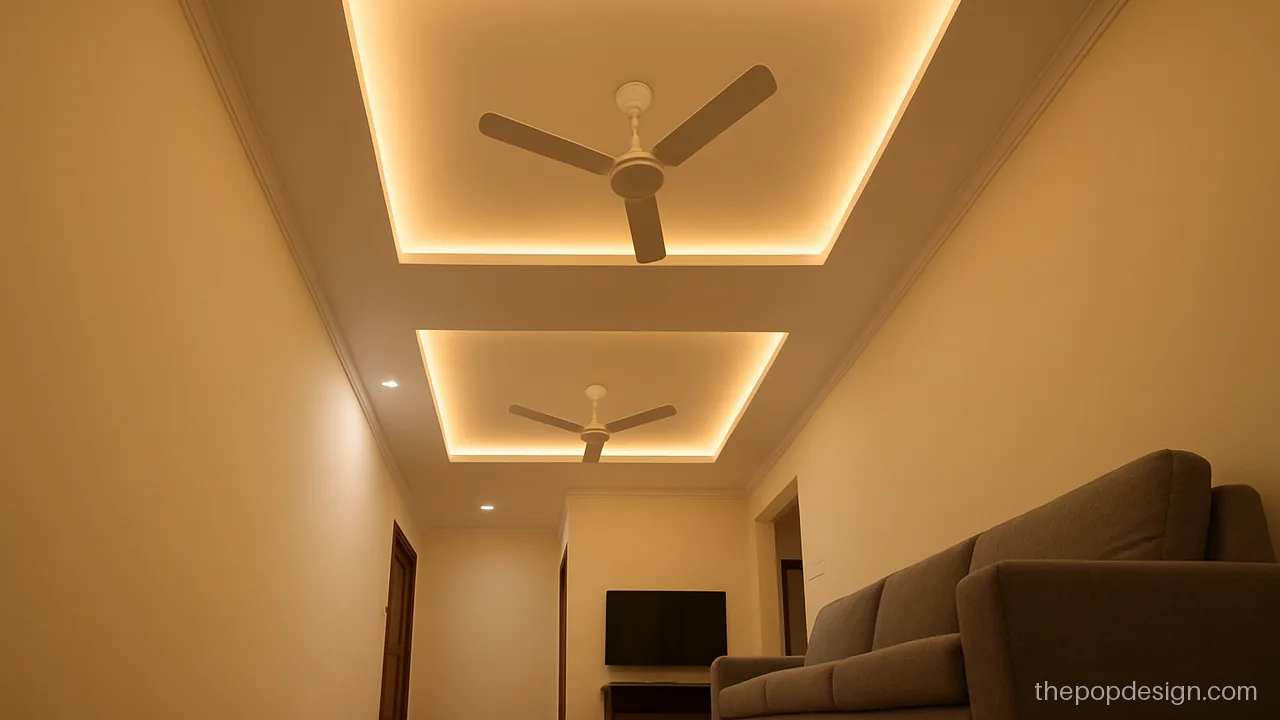

Two matching rectangles split the long ceiling in half. Warm cove in each makes evening light soft.
Contractor tip: Fan hooks at one quarter and three quarters of the length. Build each rectangle around its hook.

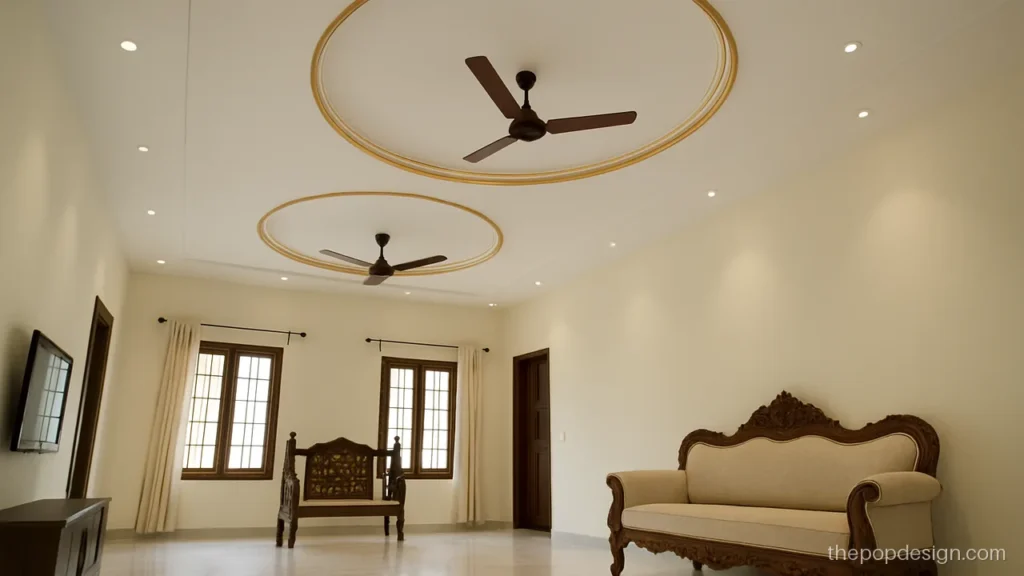

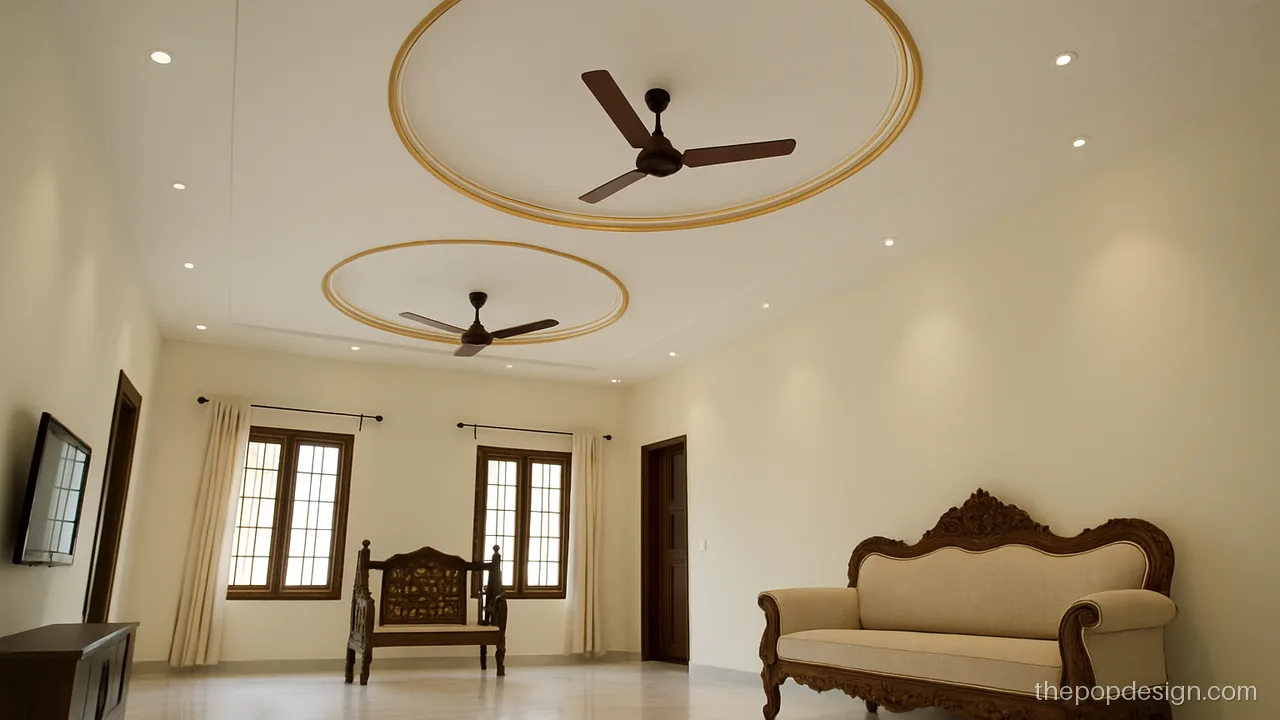

Two round recesses with a thin gold ring each. A rich look for a big main hall.
Contractor tip: Circles must be the same size. Cut one template and use it for both.

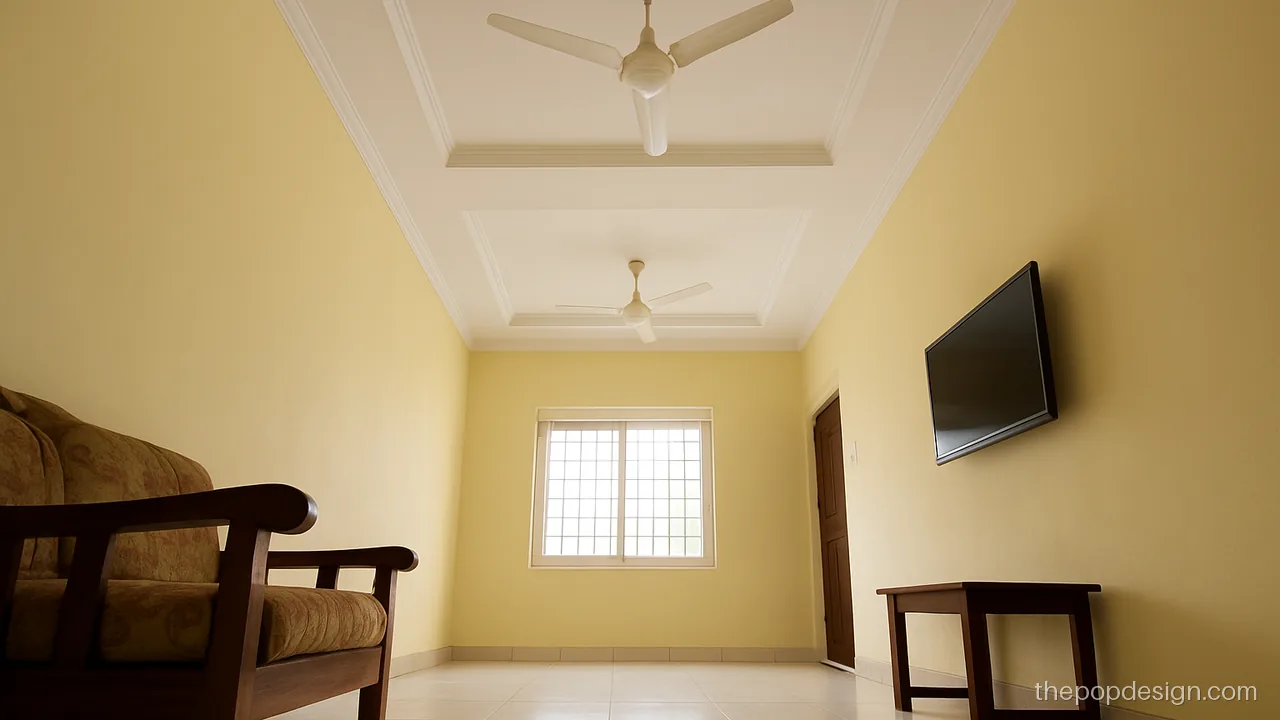

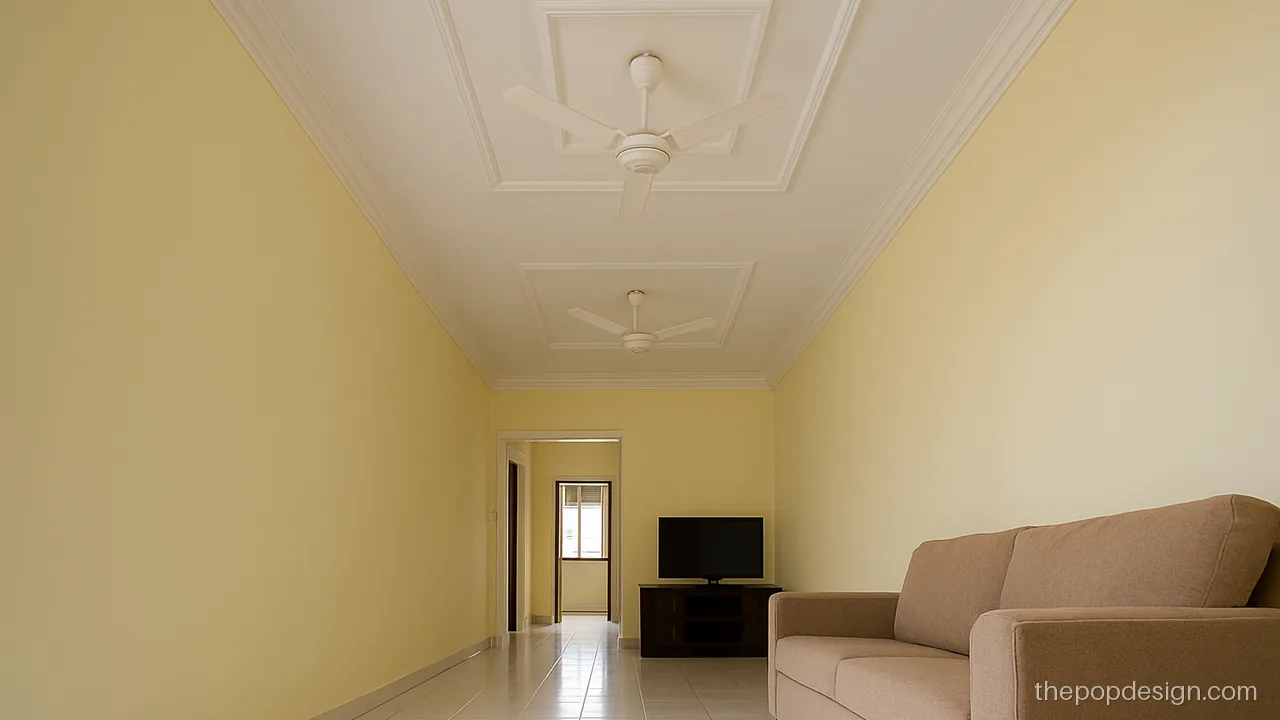

Just a border and two plain squares. Quick to build and easy on the budget.
Contractor tip: Squares need only a 3 inch drop. Keep them 3 ft from the side walls.

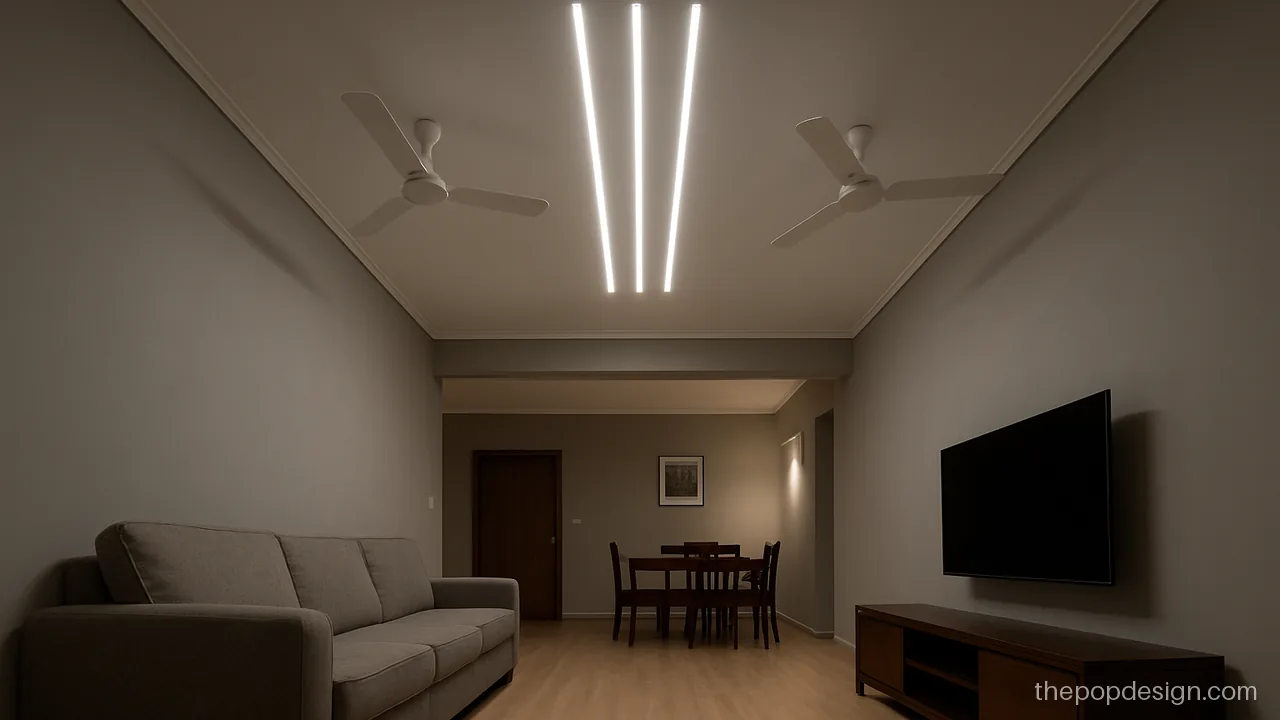

Three profile lines run across the middle and split the two fan zones. Clean and modern.
Contractor tip: Profile lines need 1 inch recess. Keep the fans at least 3 ft from each line.
Double Fan POP Design Plus Minus
Plus minus means raised and recessed parts next to each other. With two fans, keep the fan spot on a flat area, not on a step.

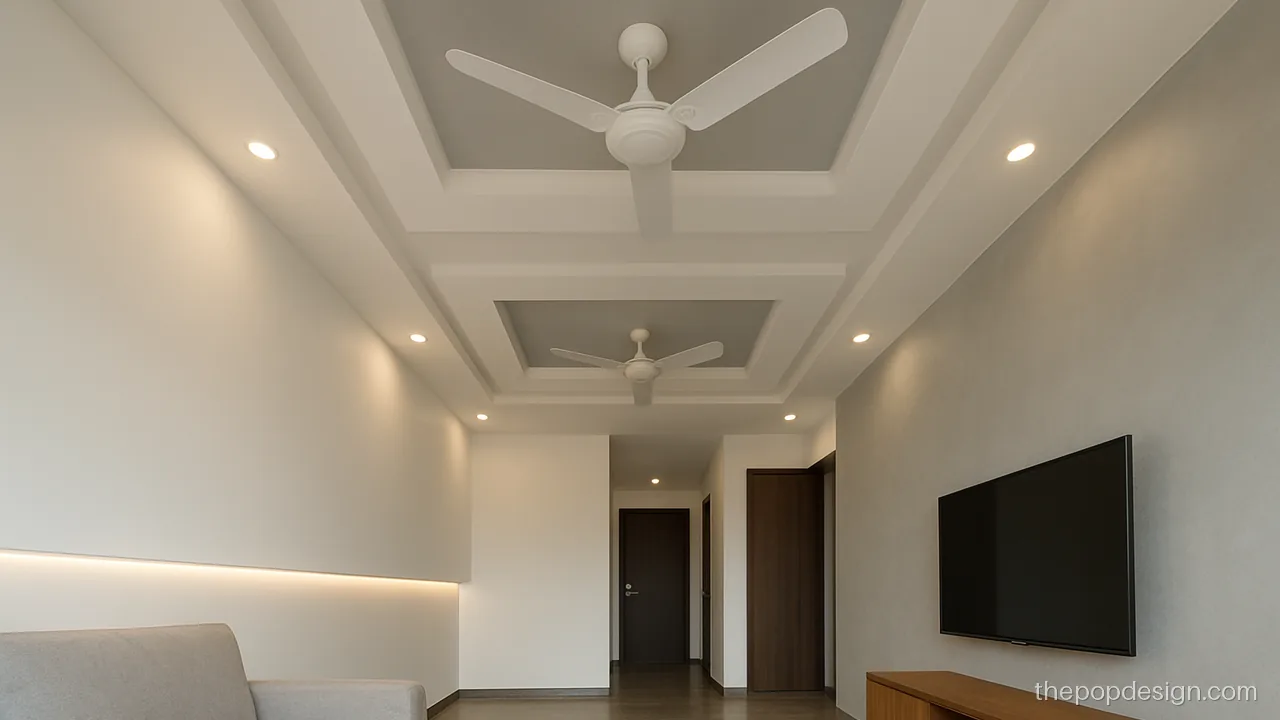

Raised white and recessed grey boxes fill the middle. Each fan sits on a flat grey box.
Contractor tip: Fan must sit on a flat panel, not a step edge. Mark hook points before box layout.

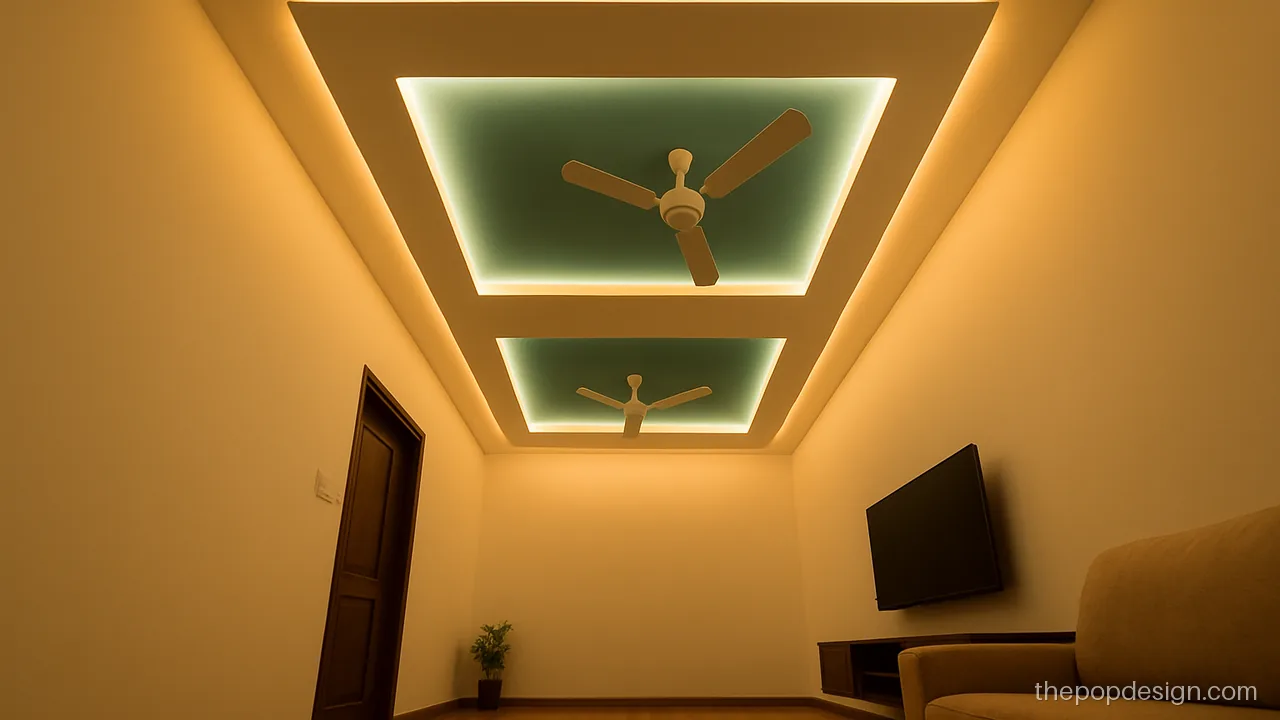

A teal strip links the two fan boxes. Looks fresh in a hall with white walls.
Contractor tip: Paint teal before fixing lights. Mask edges so the raised parts stay pure white.

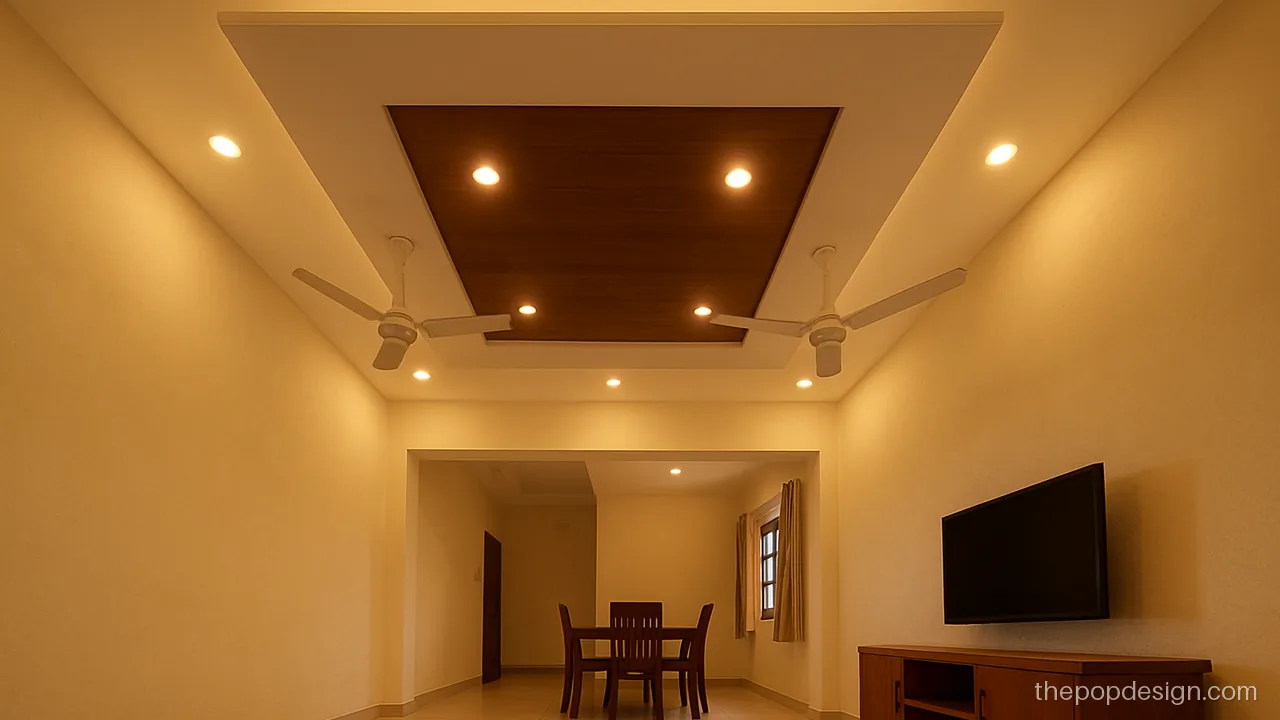

A wood panel in the recessed middle adds warmth. Fans stay on white boxes at both ends.
Contractor tip: Wood panel is laminate on board. Keep the board lighter than the POP so it does not sag.

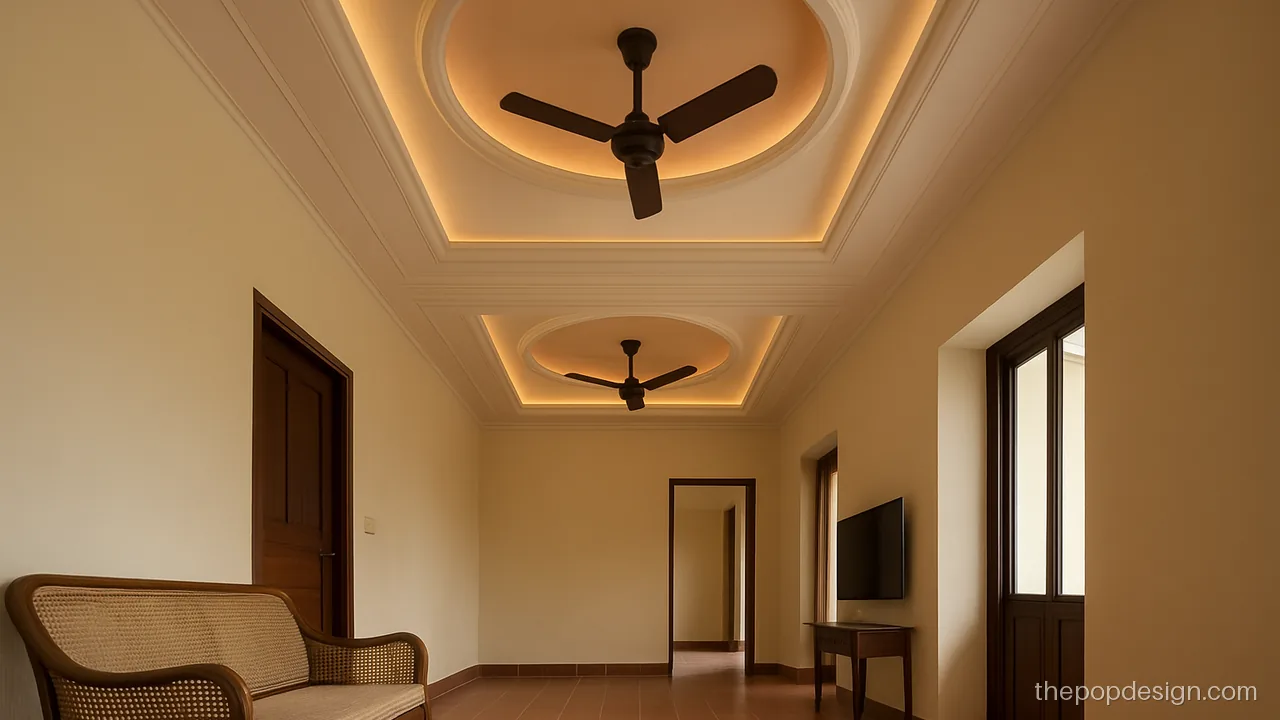

Peach ovals around each fan give a soft look. Suits a hall that gets strong sun.
Contractor tip: Ovals need bent channel. Check both curves are mirror images before punning.
Modern Style 1 Fan POP Design for Hall
Most halls under 14 x 14 ft need only one fan. A single fan POP design keeps the fan dead centre.

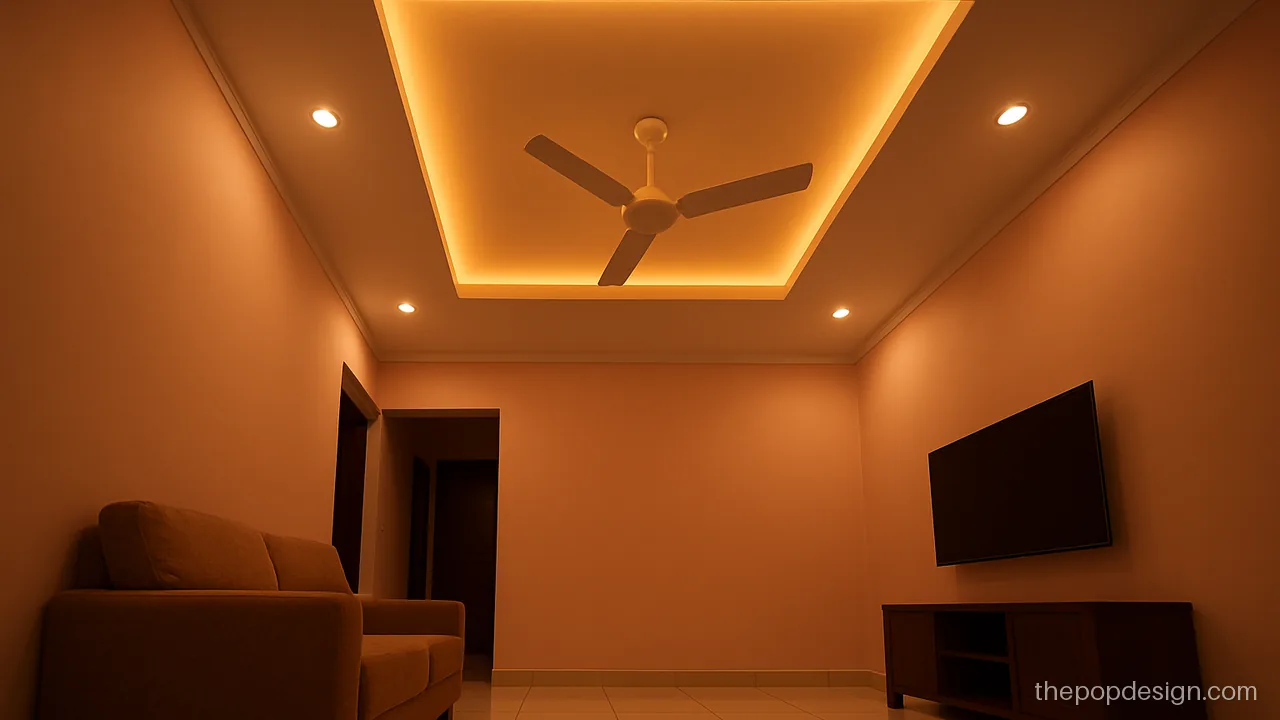

One square cove frames the pankha. Simple, neat and fits most flats.
Contractor tip: Find the exact room centre with two diagonal strings. The hook goes there.

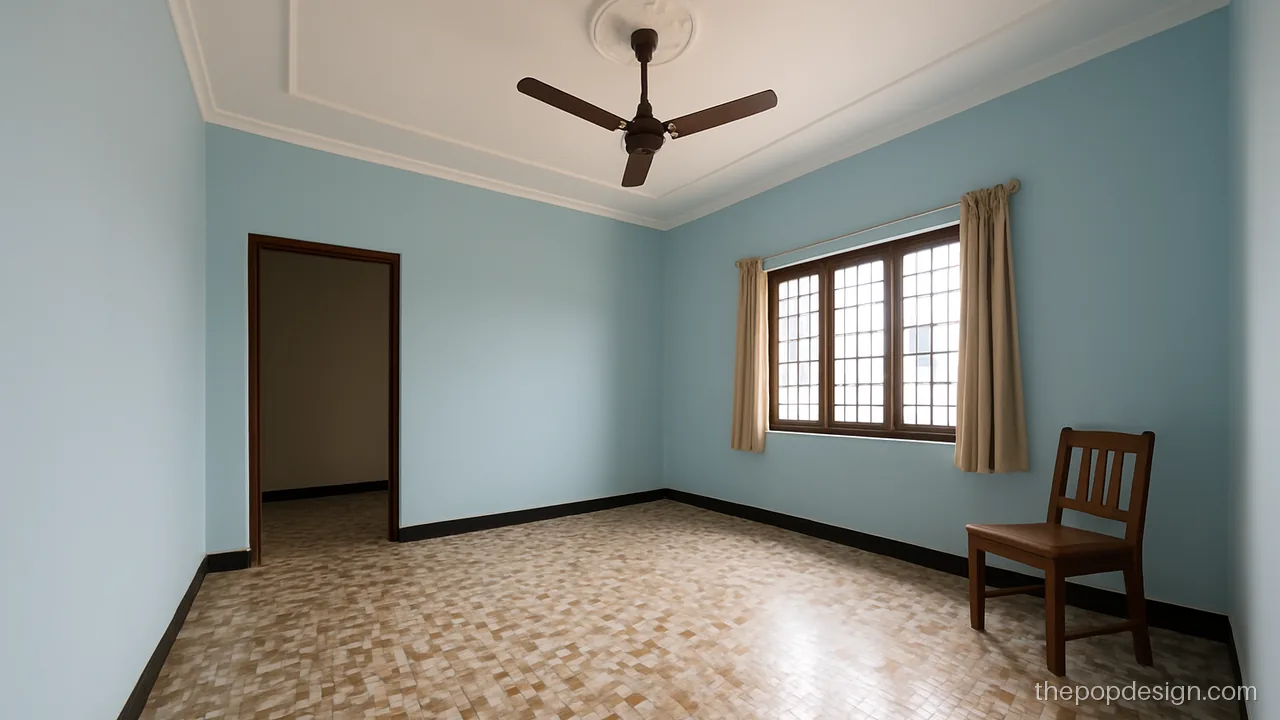

A small round medallion dresses the fan point. Good when you want a little detail only.
Contractor tip: Leave a clean hole for the downrod. Medallion is fixed after the hook and rod are set.
Two diagonal light lines cross near the fan. Looks modern without any deep drop.
Contractor tip: Lines must stop 2 ft short of the fan so blade shadow does not flicker on them.
Attractive 3 Fan POP Design for Big Hall
Halls over 30 ft long or very wide halls may need three fans. Keep all three on one line or in a neat triangle.

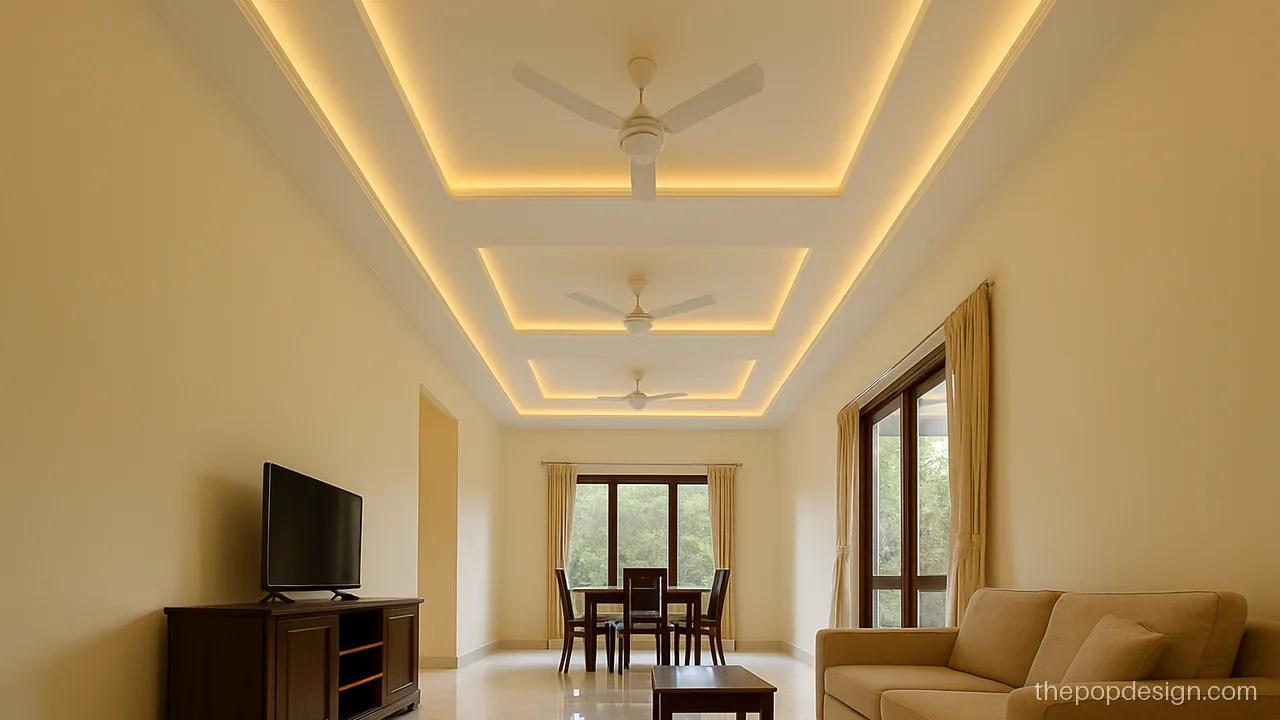

Three equal boxes in a row, one fan each. Profile lines join them into one design.
Contractor tip: Space three hooks evenly along the centre line. Measure twice before drilling the slab.

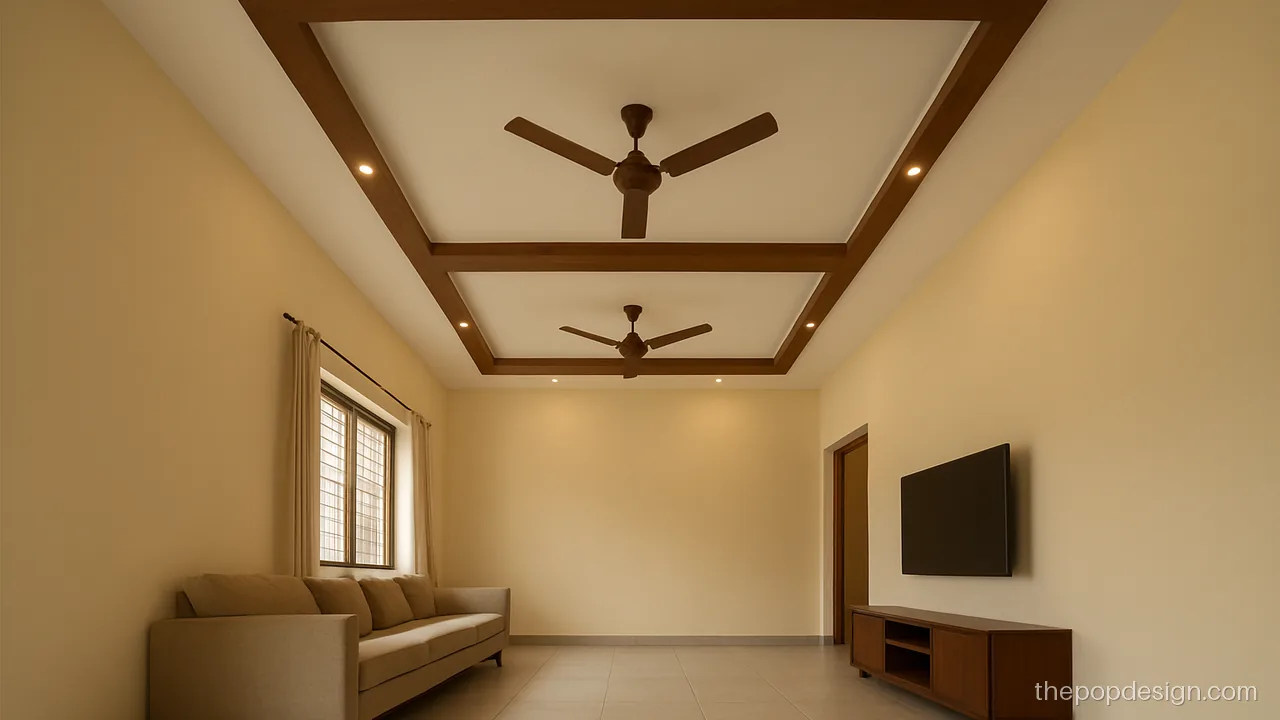

Two wood beams split the hall into three bays. Each bay has a fan and spots.
Contractor tip: Beams are hollow boxes on channel. Run fan wiring before closing them.

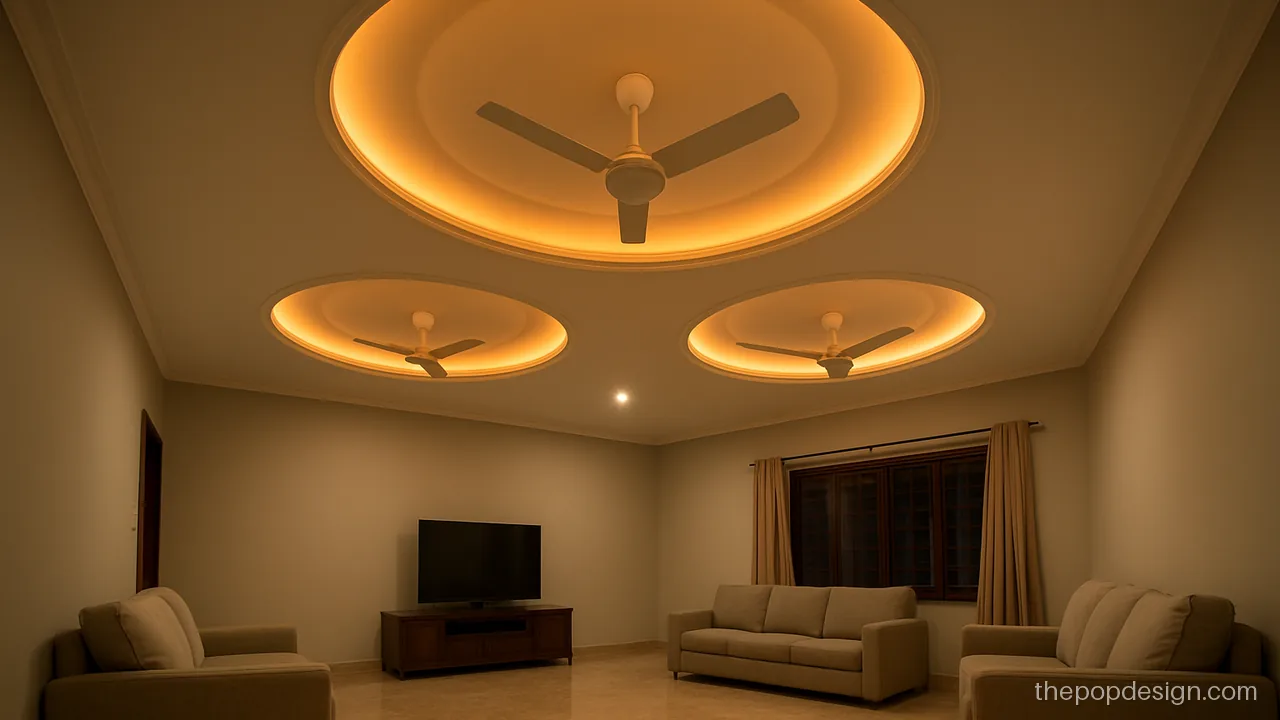

A wide hall gets three fans in a triangle with three round cut-outs. Even air everywhere.
Contractor tip: Triangle layout needs careful centre points. Draw it on the floor, then plumb up.
Simple POP Fan Box Design
A fan box is a small recessed frame just around the fan. It is the cheapest pop fan ceiling design and dresses up a fan point fast.
Two small boxes only, rest of the ceiling flat. Good for a low hall.
Contractor tip: Box size about 4 x 4 ft, 3 inch drop. Keeps height in a 9.5 ft room.

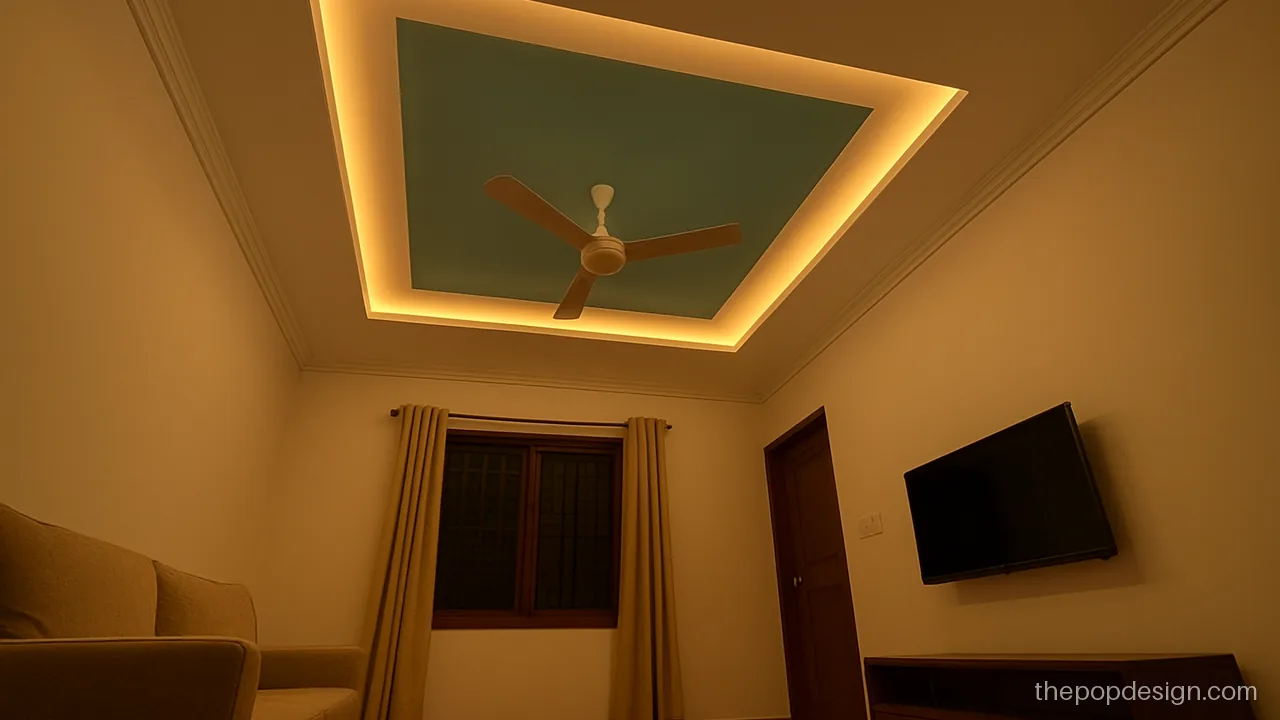

A double step box with sky blue inside. Small detail but a clear focus.
Contractor tip: Steps 2 inch each. Paint blue inside only after POP dries fully.

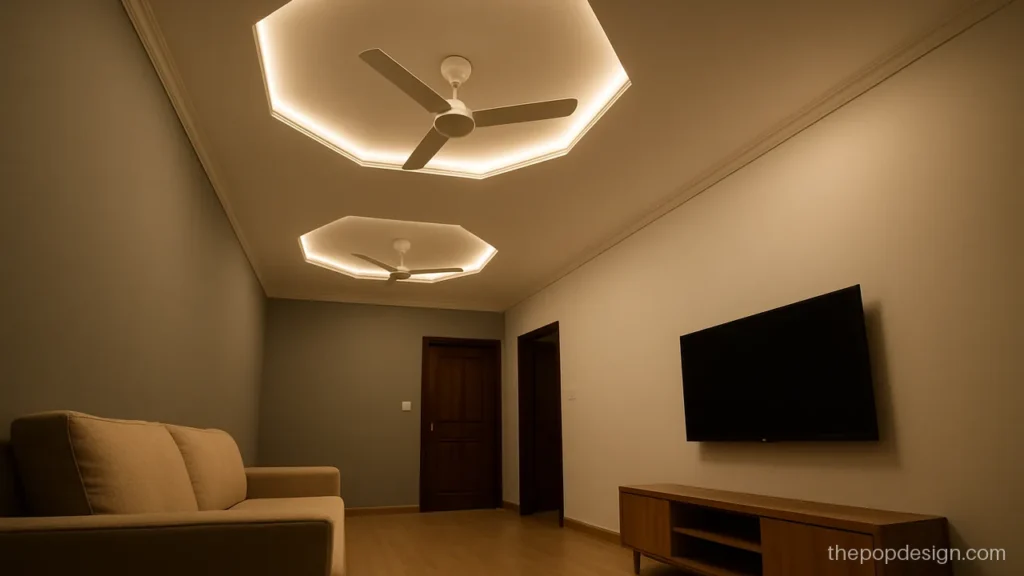

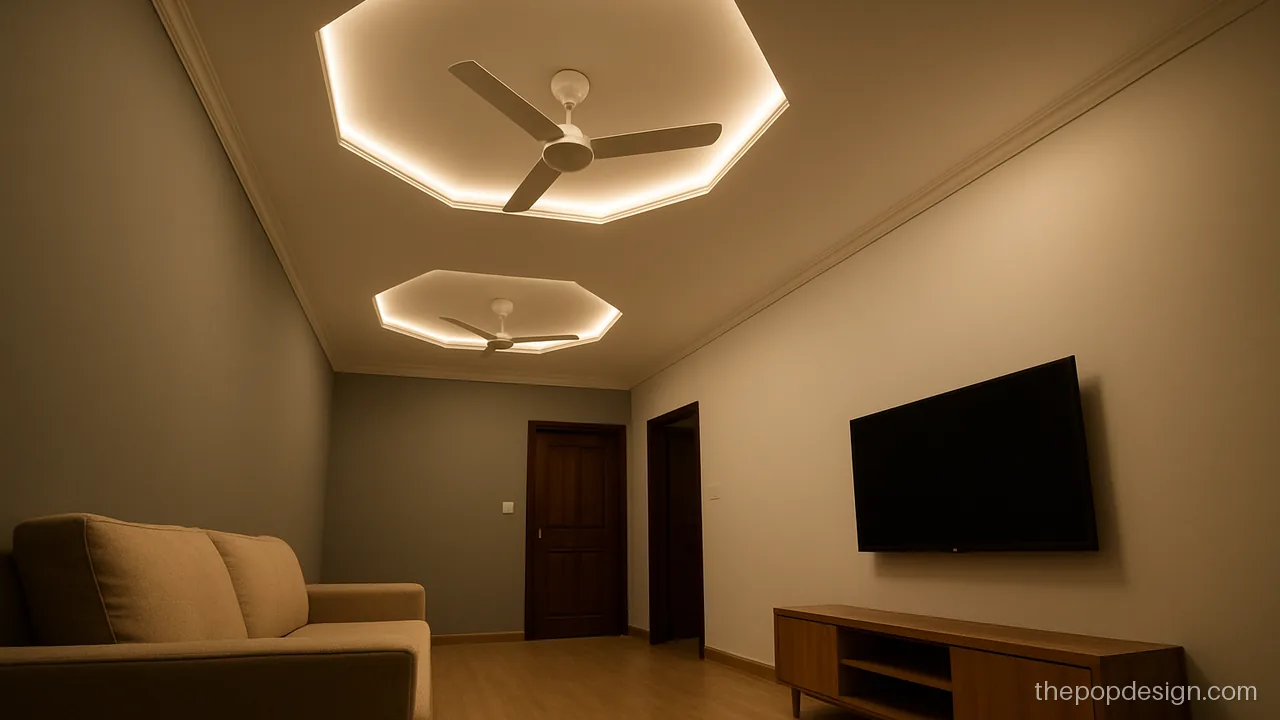

Two hexagon boxes with a raised rim. A modern shape that still costs little.
Contractor tip: Hexagons need six clean mitre joints. Tape every joint before punning.

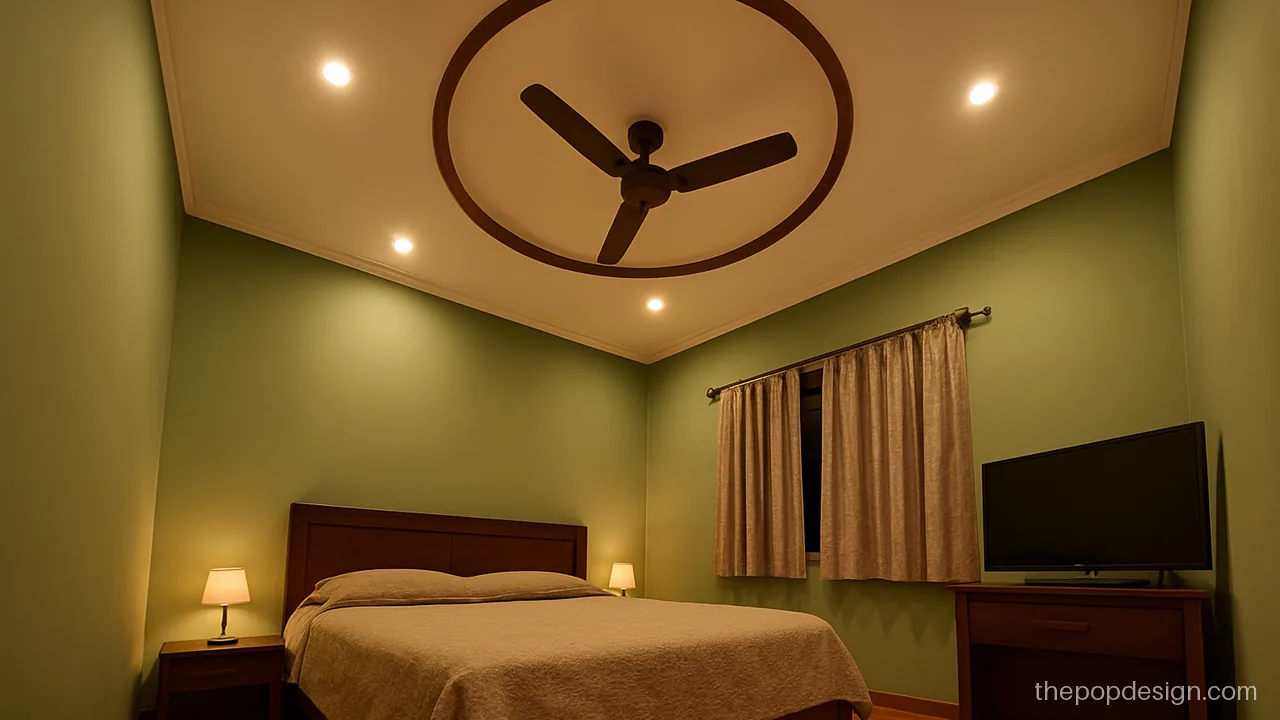

A round wood ring around one fan suits a bedroom or study. Warm and simple.
Contractor tip: Wood ring is fixed to the frame, not glued to POP. Leave a clear downrod hole.
Fan Spacing and Downrod Guide
Divide the long side into four equal parts. The two fans go at the first and third marks, centred across the width. This gives each fan an equal share of the room.
| Hall size | Fans | Hook position |
|---|---|---|
| Up to 14 x 14 ft | 1 | Exact centre |
| 12 x 18 to 14 x 26 ft | 2 | At one quarter and three quarters of length |
| Over 30 ft long or very wide | 3 | Equal thirds in a row, or a triangle |
Blades should be at least 7 ft above the floor and about 10 to 12 inches below the false ceiling for good air. With a 10 ft slab and a 6 inch drop, a short downrod works. Ask for the hook in the slab, with the downrod hole cut cleanly in the POP. More sizing help is on POP design by room size.
Light Plan and Colour with Two Fans
Keep spot lights away from fan blades. A light right above a blade makes a flicker. Put cove and profile lights near the walls or between the fans. For colour, the best colour for pop design with fan is a light shade inside the recess and white outside, so the fan does not look heavy. Grey, peach, sky blue and wood finish work well. See POP profile light design for more light ideas.
What Decides the Cost
Cost is area x rate for the design type, plus extras. A plain fan box is cheapest. Plus minus levels, curves, wood finish and long profile lines raise it. Cove strips, drivers, paint and the downrods are extras. Get the quote in writing with every item listed. Our POP design price guide shows how to compare quotes.
POP design questions
Where should the fans go in a 2 fan pop design for hall?
Split the long side into four equal parts and place fans at the first and third marks, centred across the width. This spreads air evenly. Mark both hooks in the slab before the frame goes up.
Can the fan hang from the POP ceiling?
No. POP cannot take the weight or the shake of a running fan. The fan hangs from a hook or anchor in the concrete slab, and the downrod passes through a hole in the POP.
Which double fan pop design suits a low hall?
Two small fan boxes on a flat ceiling or profile lines without a drop. These keep the height. Skip deep plus minus levels if the slab is under 9.5 ft.
What is the best colour for pop design with fan?
White outside and a light colour inside the fan recess works best. Pale grey, peach or sky blue look clean. Dark colours make the fan look heavy and show dust.
Do I need a 3 fan pop design for my hall?
Only if the hall is longer than about 30 ft or very wide. Most halls up to 26 ft do well with two fans. Three fans need careful equal spacing to look neat.
Is a pvc ceiling better than POP for a 2 fan hall?
PVC is cheaper and resists water but looks plainer and can sag in heat. POP or gypsum gives a smoother finish for a hall. See our PVC, gypsum and POP comparison.
